Machine Name:

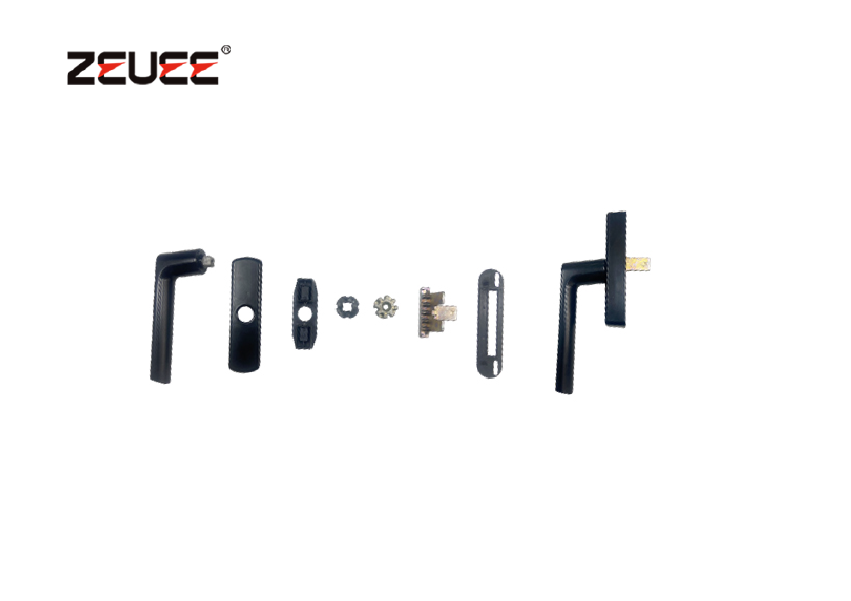

Door and window handle automatic assembly machine
Equipment Details:
This door and window handle automatic assembly machine is designed for the architectural hardware industry. It adopts a rotary dial multi station structure for compact layout and stable operation. Integrated with a four axis robot for high precision handling and assembly, it also features precise quantitative oil dispensing and fully automated thread gluing systems to ensure lubrication, anti loosening, and fastening force after assembly. Measuring 5800×3900×1850mm with an output of 15 18 pcs/min at 8000W, it provides a complete solution for efficient and consistent automated handle assembly.
Key Features :
1. Disc structure
Disc station structure, compact layout,Small footprint the structure has high stability and bearing capacity ability and precision control ability
2. Four-axis robot
Using advanced control systems and sensing technology enables high precision position control and attitude state adjustment, efficient handling assembly.
3. High precision quantitative point oil
It is composed of metering pump,nozzle and control system.The control system monitors and adjusts the entire process.Make sure the amount of oil is pumped out each time it's accurate.
4. Fully automatic precision thread dispensing
By controlling the amount of glue,speed and accuracy,will glue is evenly applied to the threaded joint up.Thus improve the better locking effect and fastening force.
Application Fields:
Specifically used for fully automated assembly, oil dispensing, gluing, and inspection lines of various handles in high end door/window systems, curtain walls, furniture, and architectural hardware manufacturing.
Equipment Parameters:
Dimensions: 5800mm × 3900mm × 1850mm
Capacity: 50 -18pcs/min
Power:8000W
Air Pressure/Voltage: 0.5-0.8 MPa / 220V AC
