Product Introduction

Machine Name :

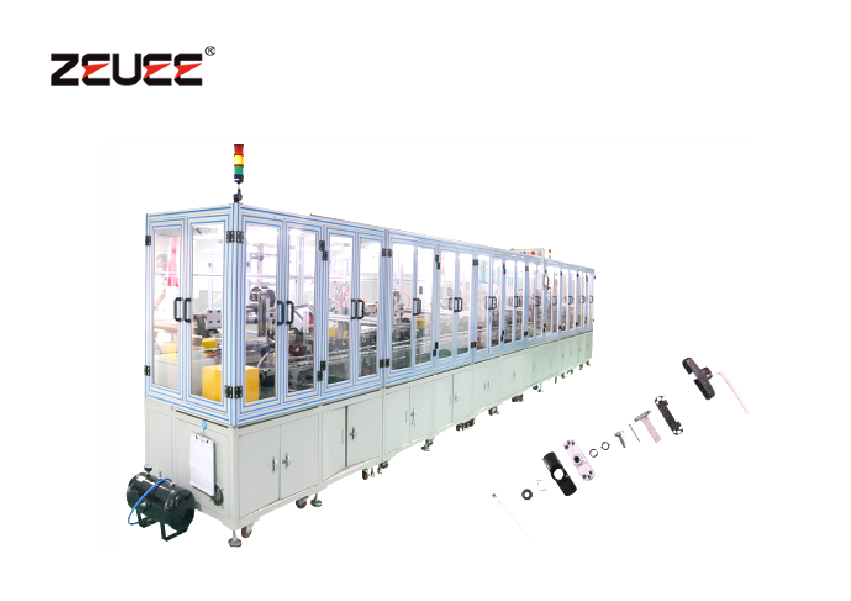

Door & window aluminum handle automatic assembling machine

Machine Details:

This door & window aluminum handle automatic assembling machine is engineered for the architectural hardware industry. It employs highquality components including SMC/AirTAC pneumatics, HIWIN precision slides, S136 machined parts, and Mitsubishi PLC for reliable, longlife operation. Integrating manual tray loading and vibratory bowl feeding, it performs automatic assembly, oiling, gluing, and screw locking via robotic handling. The system features anomaly alarms, materialshortage detection, and production counting. Measuring 1200×3000×1850mm with an output of 2025 pcs/min at 1KW, it reduces labor by approximately 10 personnel, offering an efficient and highquality automation solution for handle production.

Function Highlights:

Adopt in the construction door and window accessory assembling.

1.   Adopt at the Airt AC/SMC Original pneumatic components , precision module adopted S136TAIWAN HIWIN sliding trail. Mitsubishi PLC/WEINVElW Touch screen , other components are using the German brand.

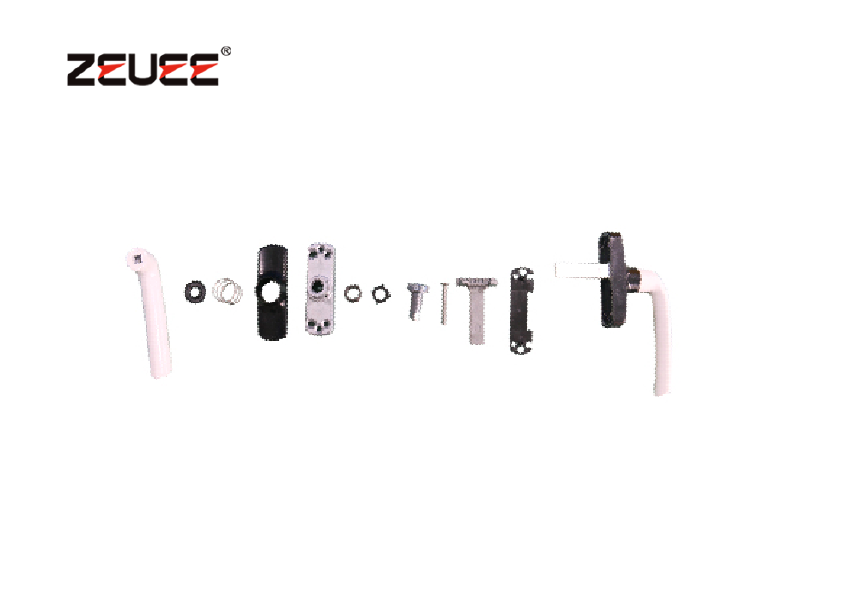

2.   The main parts(including the handle, bottom foundation ) stream out byjigs in lines, other

parts(gear, rack,cushion , waveform cushion , spring , gearpiece,cross grooving screws) fed

up by bowl feeders, automatic section thedirections , assembling ,gluing , oiling . and

discharge automatic and etc.

3.   Abnormal situations wil be Sent out the alarms by induction function incoming inspection or shortage material. Presumed setup, recordingfunction . and history alarm recording and etc.Saving labors :10 members

Application field:

Specifically designed for fully automatic assembly and production of various handles in architectural aluminum doors/windows, curtain walls, highend furniture, and construction hardware manufacturing.

Machine Configuration:

Machine Size：1200mm*3000mm*1850mm

Machine Efficiency：20-25Pcs/Min

Machine Power：1KW

 Air Pressure/Voltage: 0.5-0.8Mpa/220V AC

​
