Machine Name :

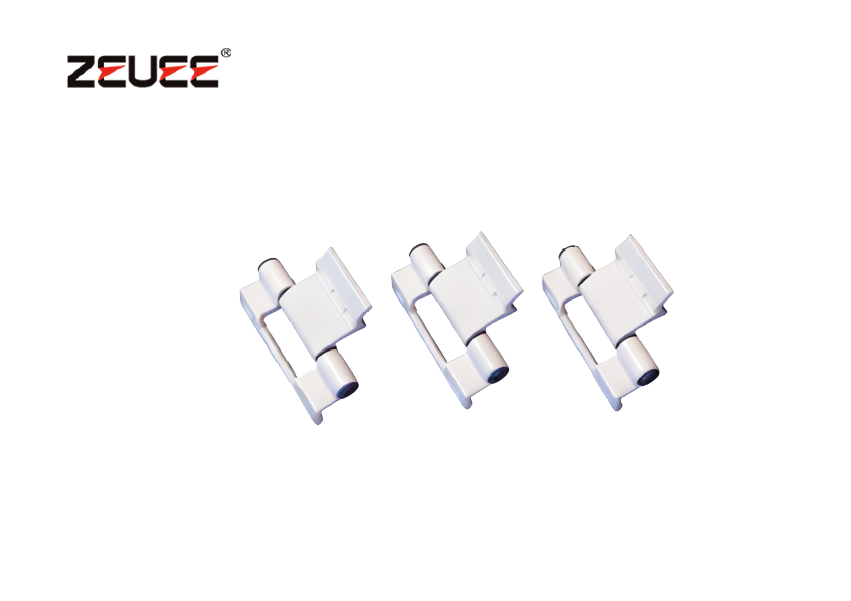

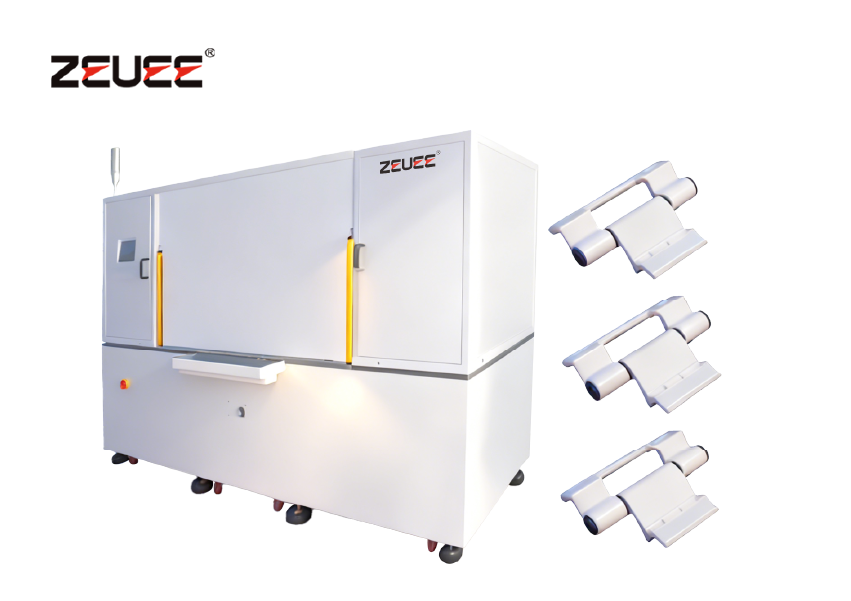

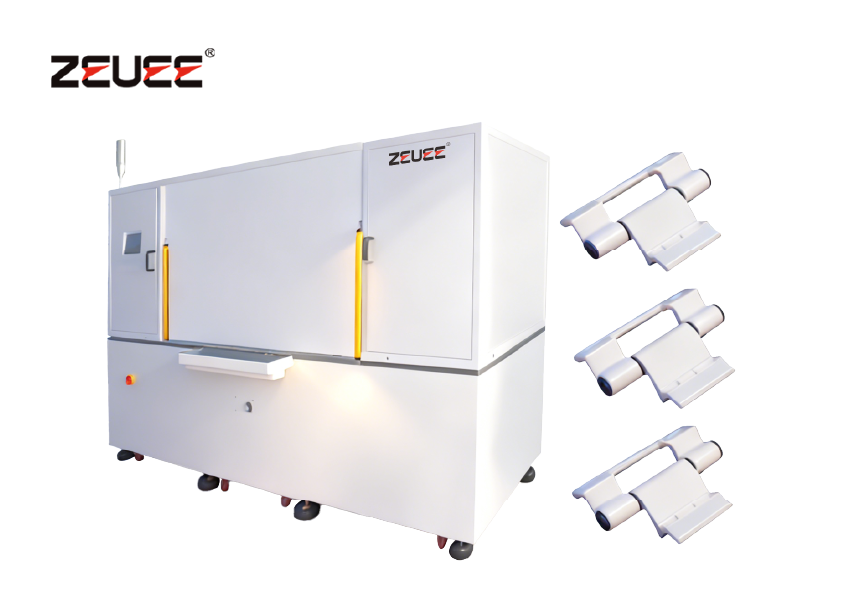

Triple folded hinge automatic assembling machine
Machine Details:
This triple folded hinge automatic assembling machine is designed for the architectural door and window hardware industry. It integrates vibratory bowl feeding, multi-station automatic placement, positioning, and crimping, achieving full-process automated assembly from loose parts to finished hinges via conveyor fixtures. Capable of co-producing multiple product models, it features intelligent functions including anomaly alarms, material shortage detection, production counting, and historical logging. With dimensions of 1200×3000×1850mm and an output of 20 25 pcs/min, it enables efficient and flexible automated production of triple-wing hinges.
Function Highlights:
Adopt in the construction door and window accessory assembling.Using automatic bowl feeder, automatic feeding every parts, automatic assembling , automatic crimping , transit assemble ,and grip the parts by tools and automatic assembling and suitable for multiple products with same machine .
Automatic feeding all of the parts , small parts using the manual feeding or using the bowl feeder to feed , automatic put it into the tools automatic position .automatic selection , automatic crimping ,automatic griping etc. all set in one automatic lines
The machine have equipped the abnormal alarm and instruction index function and inspection the direction of incoming goods and shortage material alarm function . presume , etc.
Account function and history recording alarm function.
Application Field:
Specifically used for fully automated assembly and inspection lines of triple wing hinges in high end doors/windows, curtain wall systems, furniture, and industrial cabinets.
Machine Configuration:
Machine Size：1200*3000*1850mm
Machine Efficiency：20-25m/min
Machine Power：220/380V 50HZ
Air Pressure/Voltage: 0.5-0.8Mpa/220V AC
