Machine Name :

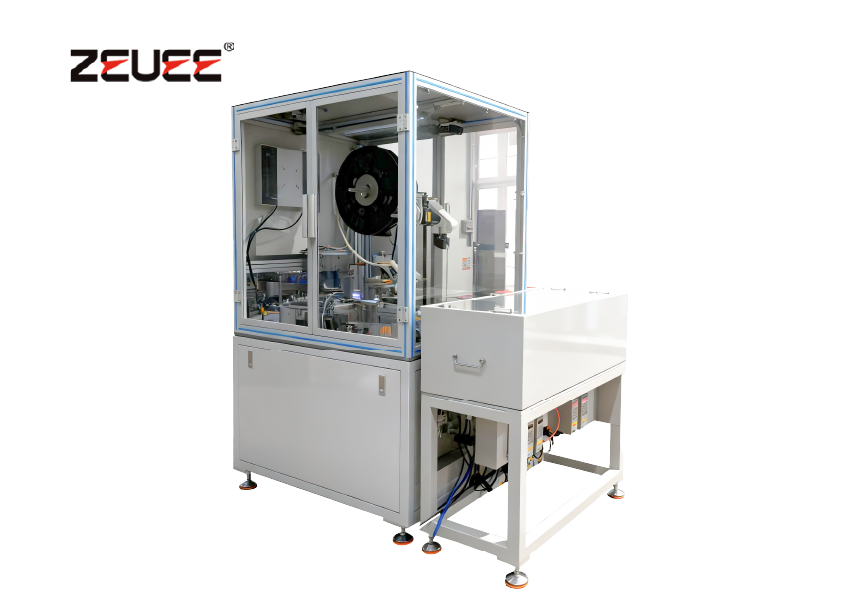

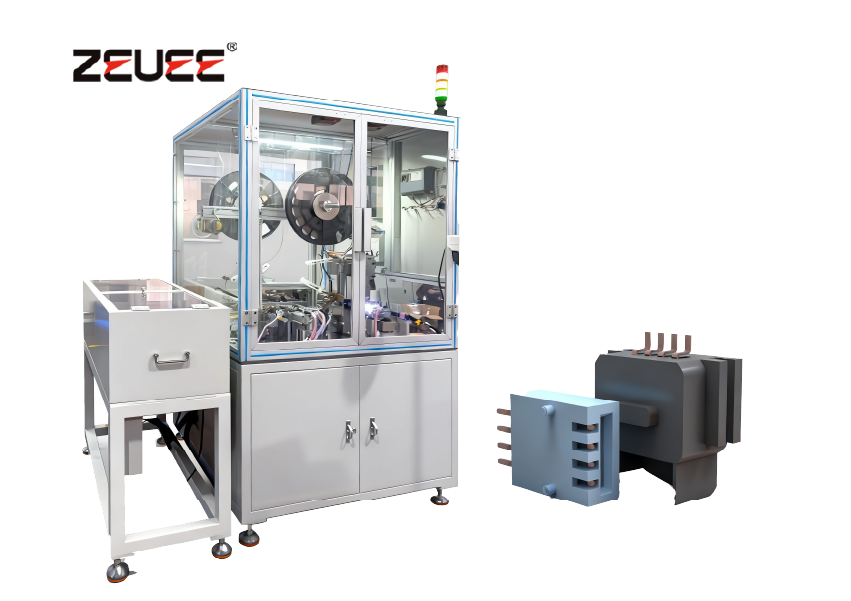

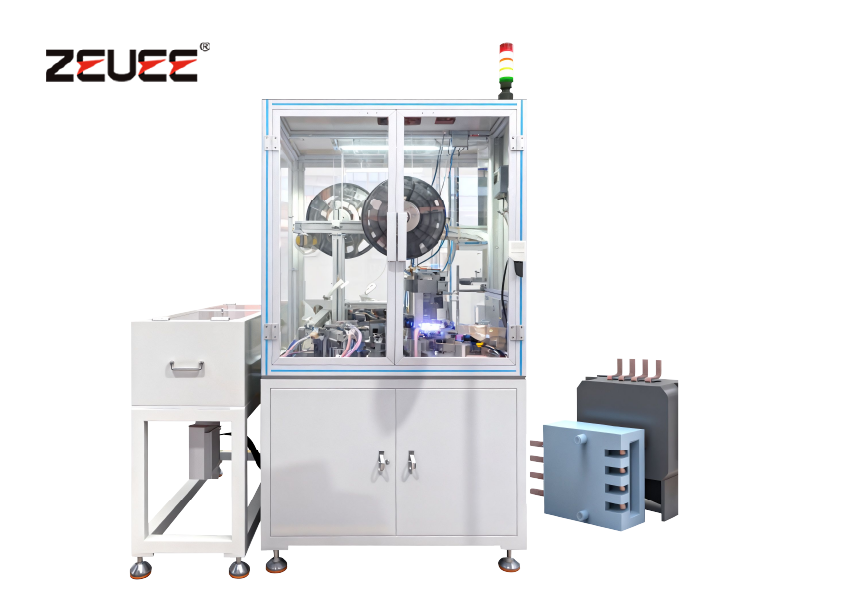

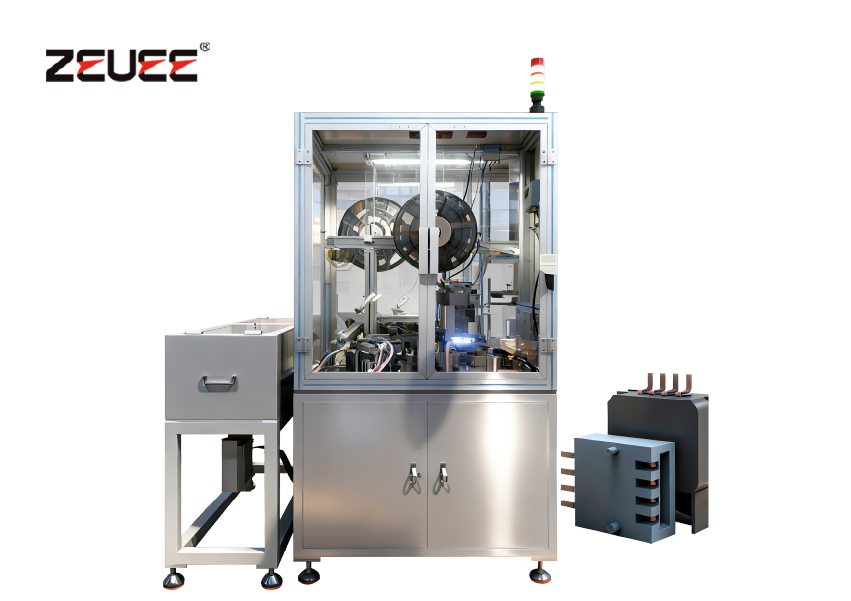

Terminal connector automatic assembly machine
Machine Details:
This terminal connector automatic assembly machine features high-precision assembly for reliable terminal-housing mating, automatic tail material removal, integrated CCD vision inspection for precise detection of insertion and crimping defects, and automatic defective sorting. With a compact footprint (1100×1200×1800mm) and output of 30-35 pcs/min at 3000W, it is designed for fully automated, high-reliability connector production.
Function Highlights:
1.High-precision assembly
The terminal and connector housing are precisely and efficiently connected, with high assembly accuracy and reliability
2. Automatic tail removal
The terminal tail material tape is cut by the tail material cutting mechanism and automatically collected in the waste box.
3.CCD vision inspection
Accurately judge the insertion accuracy of terminals, precisely identify the problem of missing crimping and bending, and strictly control the quality of terminals
4、Sorting of defective products
It can automatically distinguish between good products and defective ones, and sort the defective products into the defective product material box.
Application Field:
Specifically designed for high-precision, fully automatic assembly and inspection of various terminal connectors in automotive electronics, consumer electronics, industrial controls, and communication equipment.
Machine Configuration:
Machine Size：1100*1200*1800mm
Machine Efficiency：30-35pcs/min
Machine Power：3000w
Air Pressure/Voltage: 0.4-0.7Mpa/220V AC
