Machine Name:

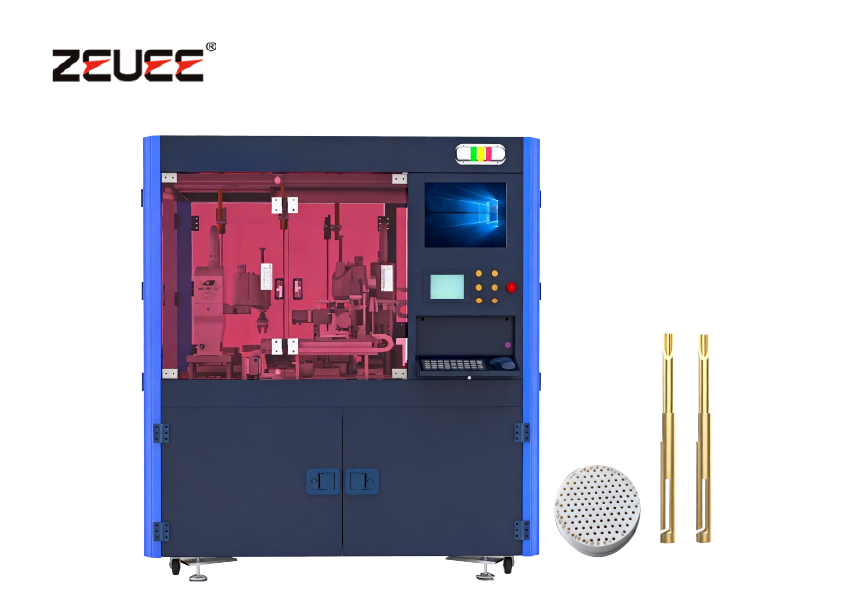

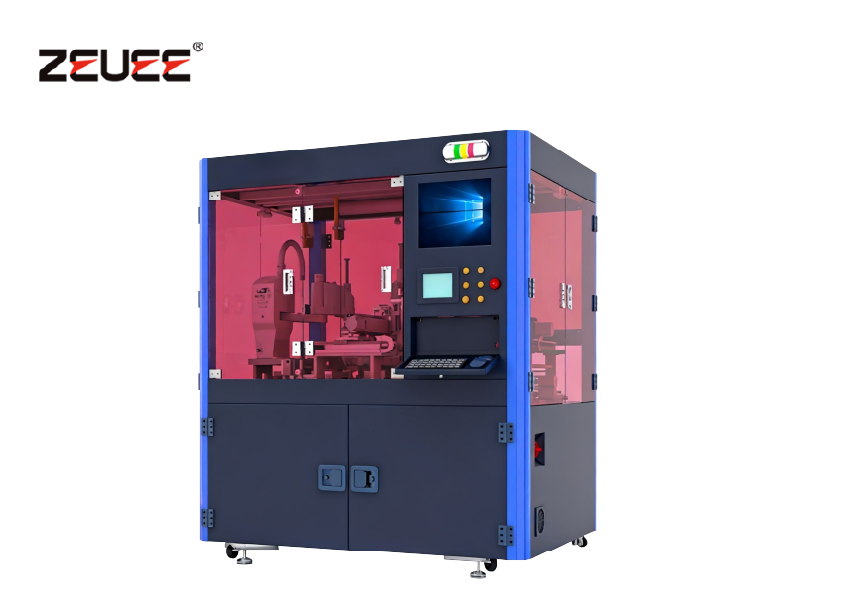

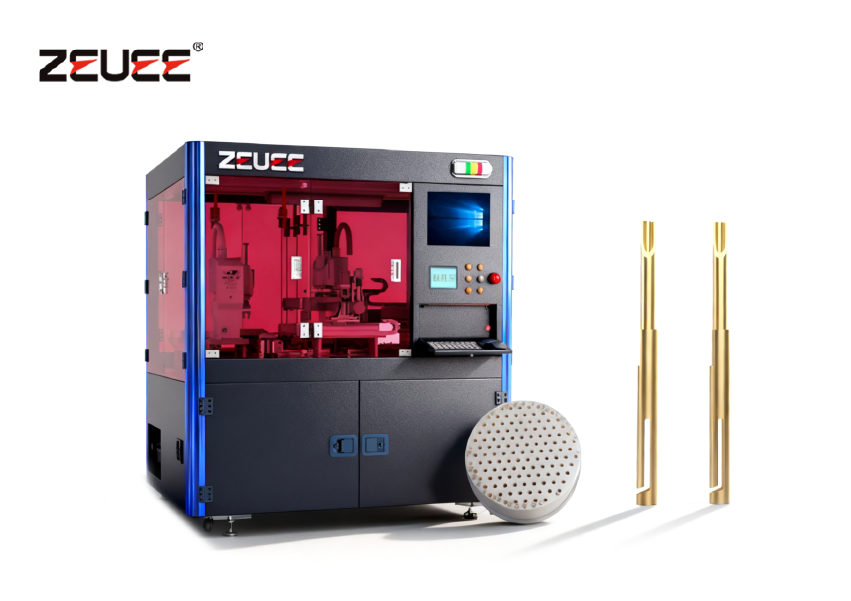

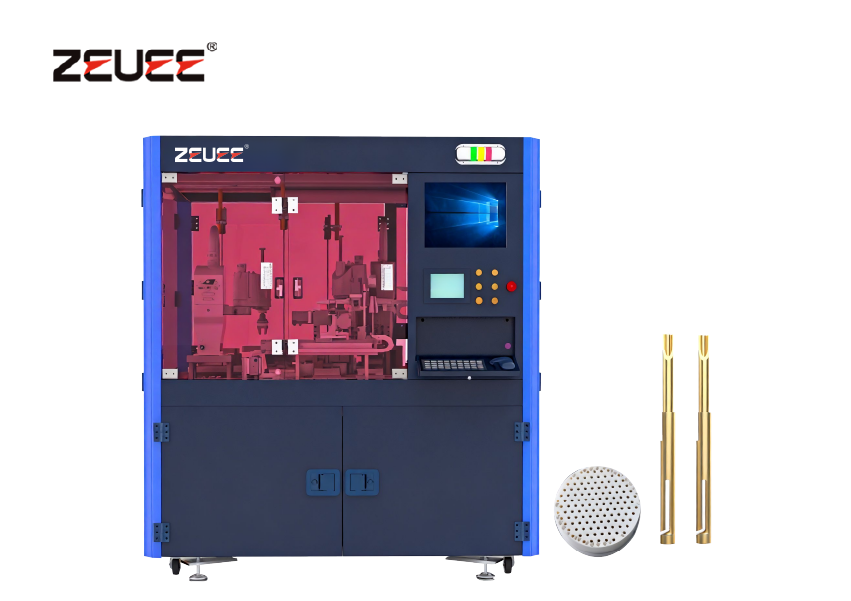

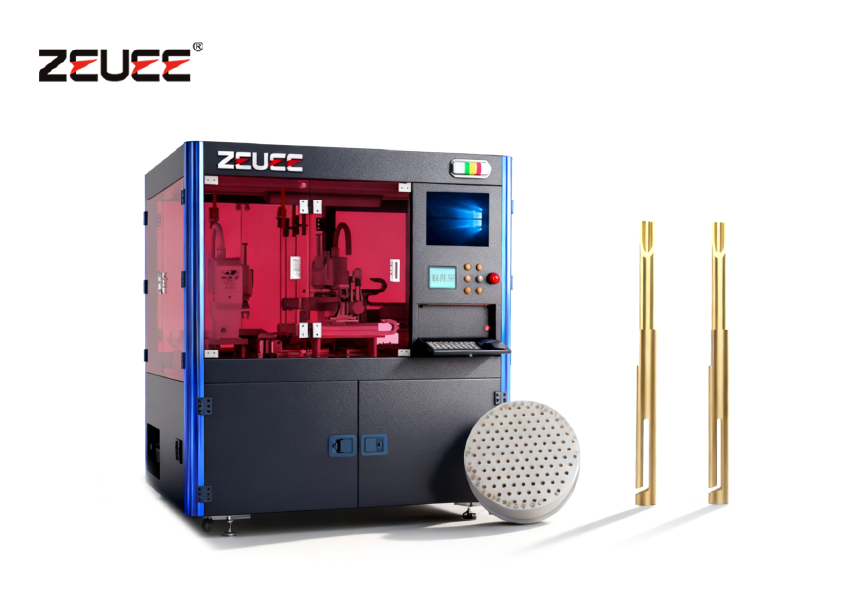

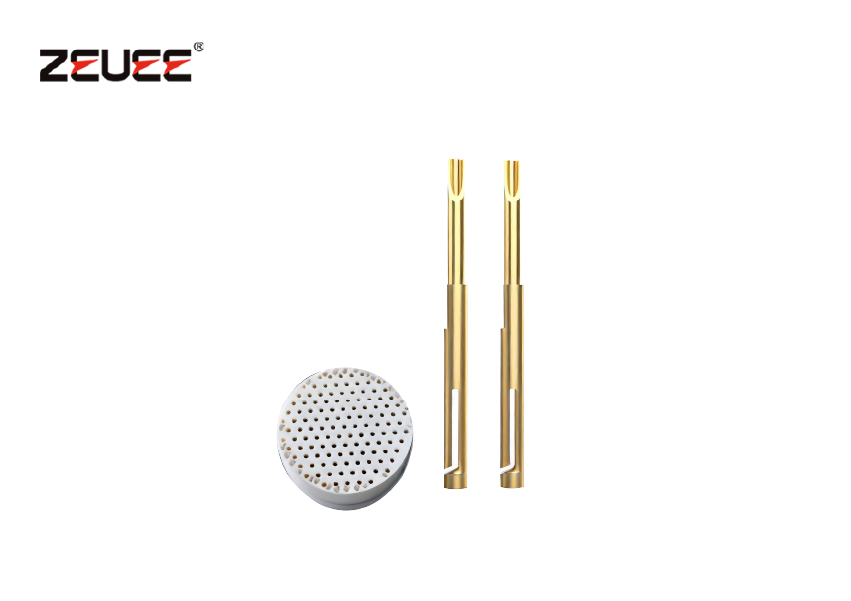

Jack insulation components automatic assembly equipment
Equipment Details:
This jack insulation components automatic assembly equipment integrates a fully automated flexible feeding system with CCD vision guidance, enabling precise dimensional inspection and servo driven fixture positioning. It features crimp end quality inspection and CCD hole alignment vision for accurate assembly, and uses retractable self centering clamps to ensure part concentricity and tray placement accuracy. Measuring 1730×1570×1950mm with an output of 20 25 pcs/min at 4000W, it is engineered for fully automated, high precision assembly and inspection of connector insulation components.
Key Features :
1. Fully automatic flexible feeding
The fully automatic flexible feeding system and CCD camera assist in feeding and the ervo system precisely positions the fixture according to the size of the insulating parts.
2. Socket inspection
Check whether the sealing end is sealed. If the value is exceeded, automatically place it in the non-confoming material box.
3.CCD vision inspection
Under the guidance of the visual CCD, the holes of the product are precisely positioned.And achieve efficient and stable assembly.
4. Lockmouth type clip
When transporting products and arranging them on plates, use the constricted type of clamps to ensure that the products are concentric and the arrangement of materials is more precise.
Application Fields:
Specifically designed for fully automated assembly, vision inspection, and quality control of jack insulation components in automotive electronics, industrial connectors, communication equipment, and consumer electronics.
Equipment Parameters
Dimensions: 1100*900*1850mm
Capacity: 10-13pcs/min
Power: 2000w
Air Pressure/Voltage: 0.4-0.6Mpa/220V AC
