Machine Name:

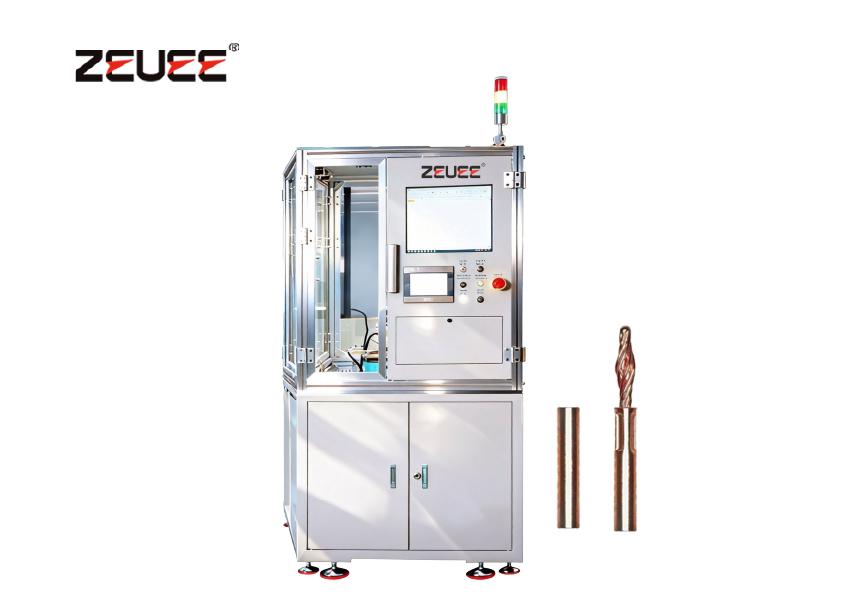

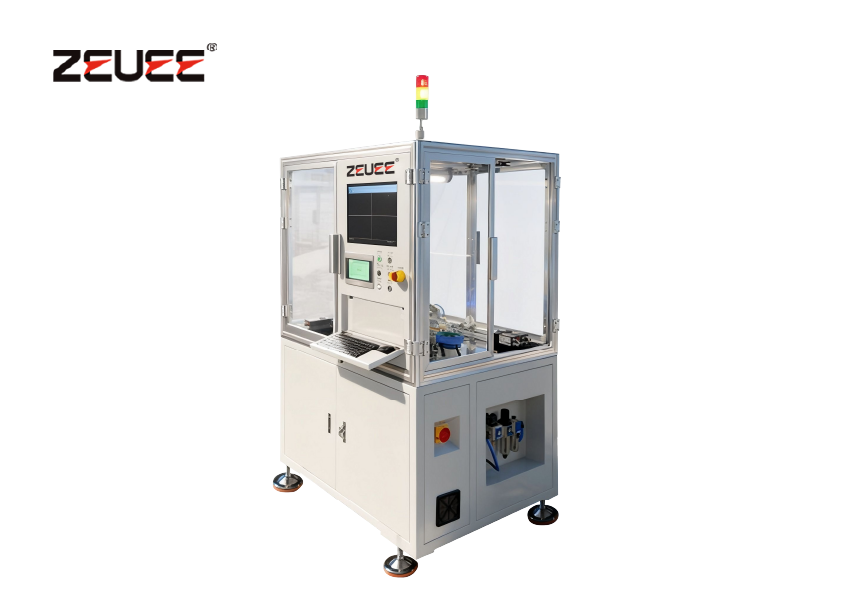

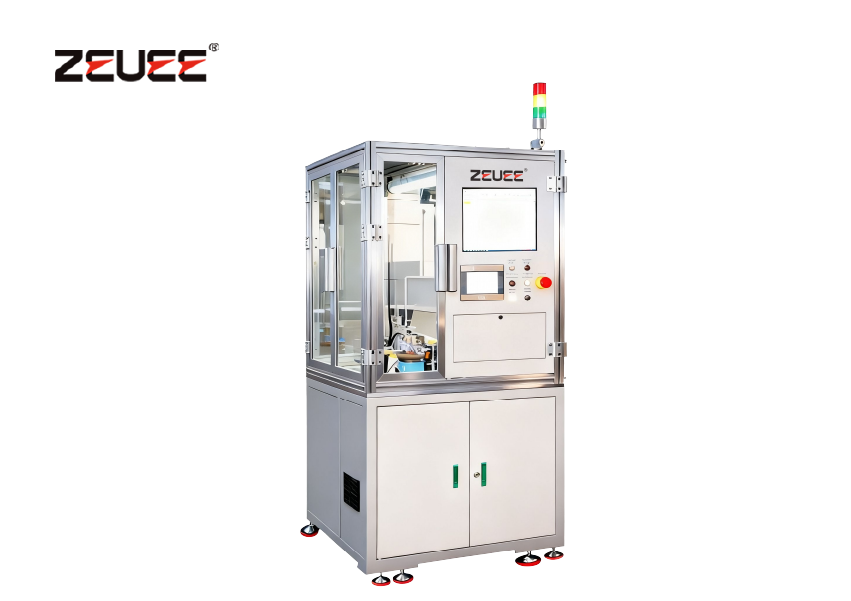

Twist pin automatic crimping machine
Equipment Details:
This Twist pin automatic crimping machine is engineered for high-precision four-point crimping of twist pins (hyperboloid contacts). It employs dedicated tooling and integrated CCD inspection to monitor crimp dimensions, length, and concentricity in real time, preventing deformation, wire breakage, and poor contact. The automated feeding, positioning, and crimping process ensures high-speed, stable operation, while modular design simplifies maintenance. With dimensions of 1100×900×1850mm and an output of 10-13 pcs/min at 2000W, it provides a fully automated crimping solution for reliable twist-pin connections.
Key Features :
1.High-precision crimping
The crimping mechanism adopts a four-point crimping method and the crimping mold is a specially designed dedicated mold for twist pins ensuring stable crimping effect.
2.Intelligent detection
Combined with C CCD intelligent detection,it can check the finished crimping size,length and concentricity improving the quality of the finished products.
3.Efficient production
The equipment has an integrated process of automatic feeding, positioning and crimping, with fast operation speed and stable operation, achieving high production efficiency.
4.Modular design
The equipment features a modular structure making it easy to disassemble and maintain, with high flexibility.
Application Fields:

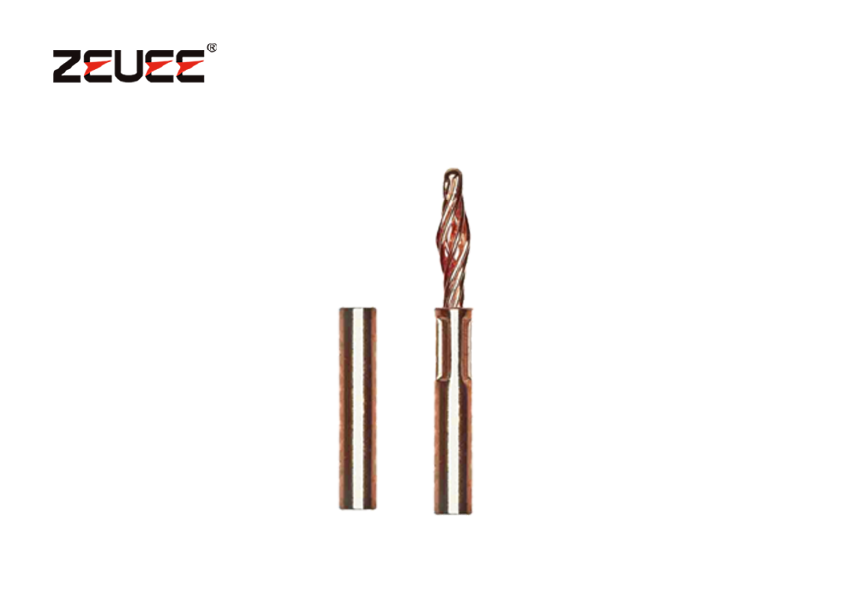

Specifically designed for automated precision crimping and quality inspection of hyperboloid contact rear casings in aerospace, military electronics, high-end test probes, and high-reliability industrial connectors.
Equipment Parameters
Dimensions: 1100*900*1850mm
Capacity: 10-13pcs/min
Power: 2000w
Air Pressure/Voltage: 0.4-0.6Mpa/220V AC
