Machine Name :

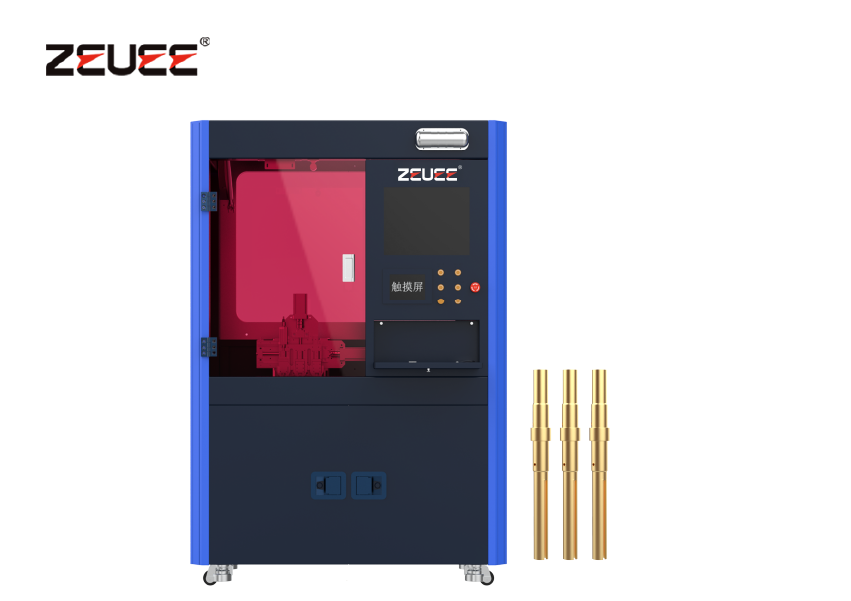

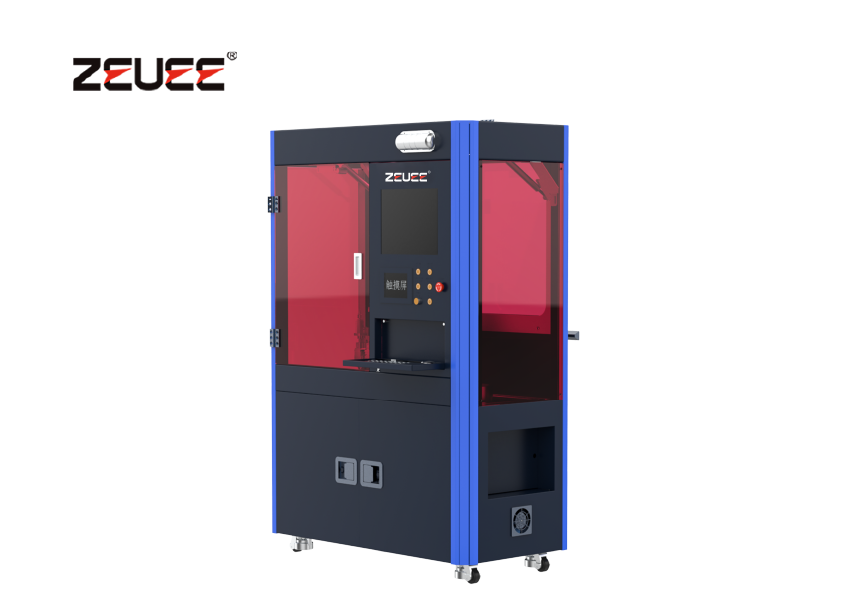

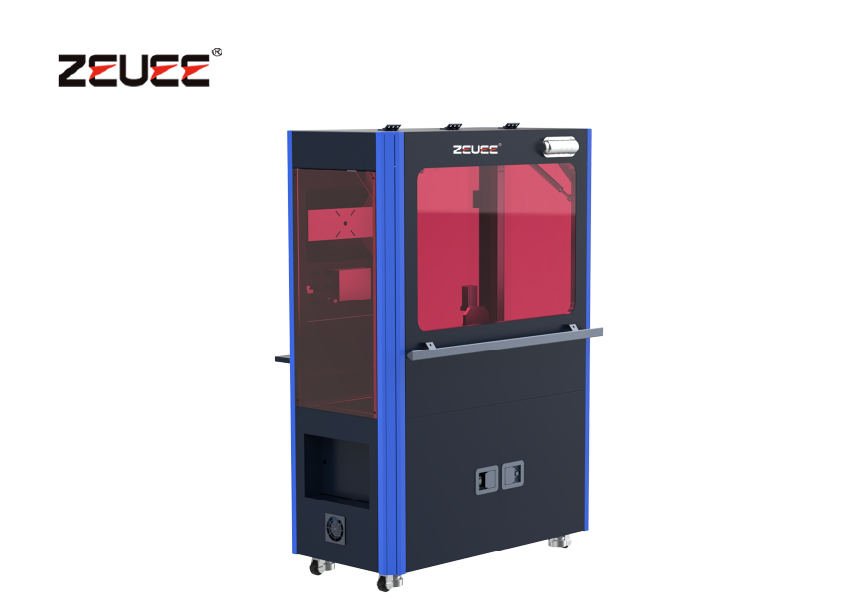

Hyperboloid socket insertion and extraction force checking machine

Machine Details:

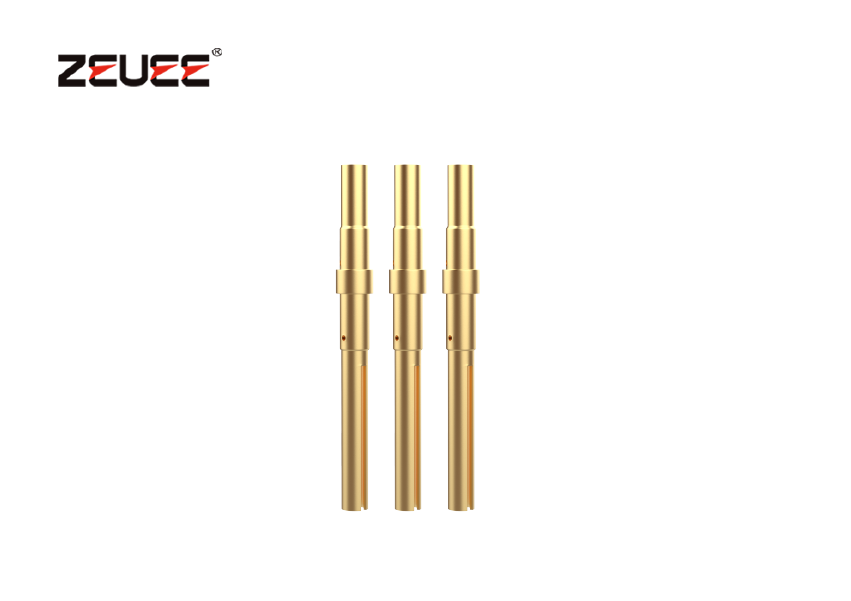

This hyperboloid socket insertion/extraction force testing machine is designed for precise mechanical performance evaluation of hyperboloid sockets. It integrates a flexible vibratory feeder with CCD vision positioning and a four-axis robot for scratchfree handling, along with automatic orientation correction and stable weightbased force measurement. The system automatically sorts qualified and defective products with full automation. Measuring 1100×700×1900mm with a testing rate of 1012 pcs/min at 300W, it delivers a fully automated solution for verifying socket connection reliability.

Function Highlights:

1. CCD positioning flexible feeding

The flexible vibrating disc, combined with CCD vision positioning and precise grasping by a four-axis robot, avoids material wear.

2.Automatic correction of jack orientation

It adopts a material discharge guiding device to automatically correct the placement direction of the socket holes,

3.Stability weights measure force

The force value of the weights is stable and reliable accurately determining the insertion and extraction force state of the socket.

4. Automatic sorting

Automatic classification of good and defective products, accurate quality control.

Application Field:

Specifically used for fully automated testing and quality control of insertion/extraction force, durability, and contact reliability of hyperboloid sockets in aerospace, military electronics, highend industrial connectors, and medical devices.

Machine Configuration:

Machine Size：1100*700*1900mm

 Machine Efficiency：10-12pcs/min

Machine Power：300w

Air Pressure/Voltage: 0.5-0.8Mpa/220V AC
