Machine Name :

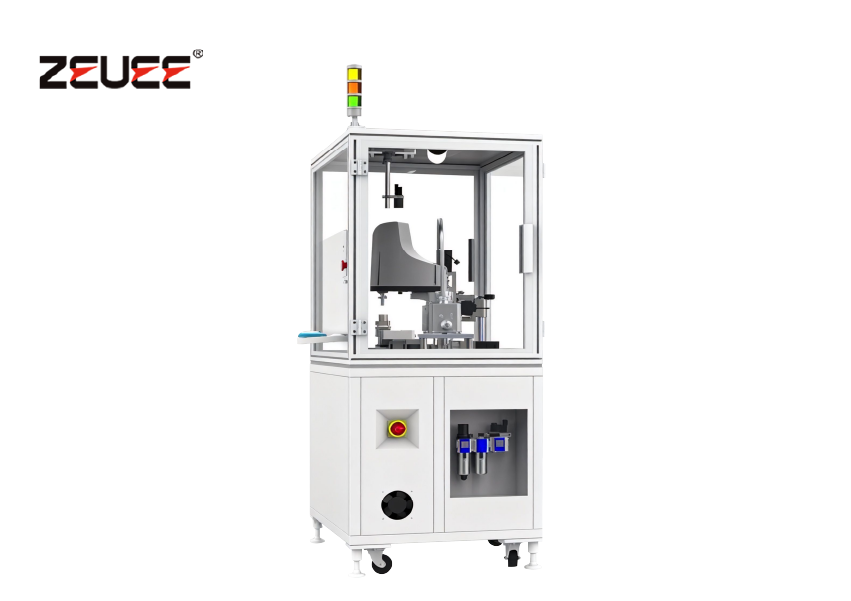

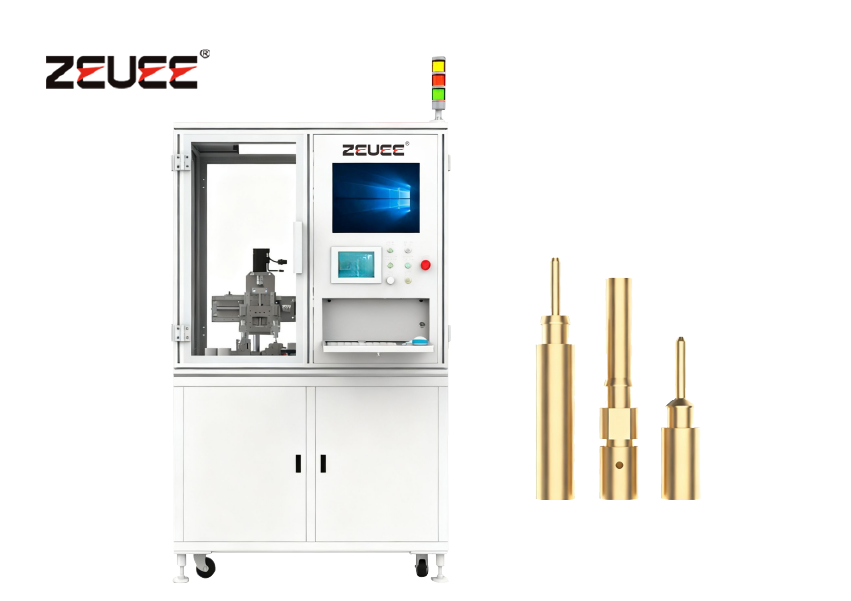

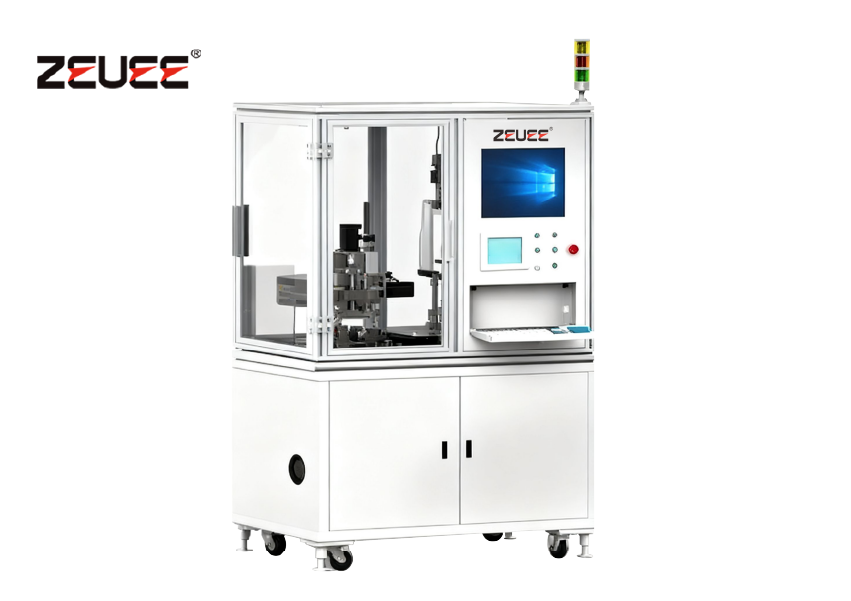

Single head socket inserting and testing automatic machine
Machine Details:
This single head socket insertion/extraction force testing machine integrates a four-axis robot for flexible handling and a servo-driven system to perform high-precision mechanical testing at multiple points and angles. Featuring movable positioning modules for flexible test setup and speed control, along with a modular design for easy maintenance and expansion, it is compact (1100×700×1900mm) with a cycle time of 12-15 pcs/min at 300W, designed for fully automated durability and performance testing of connectors.
Function Highlights:
1.Robot gripping material
Four axis robot with flexible feeders to grip
and achieve the multiple specification flexible feeders.
2. Precision Servo driving
Gripping raw material and test together with Servomotor to control can be adjusted by digital module.
3. Moving position module
The equipment adopted the moving can be fixed and position module.controlled in multiple points and angles as well as the speed of the testing of inserting forces.
4. Modular design
The equipment adopts a modular design, which is easy to disassemble and maintain, and has high flexibility.
Application Field:

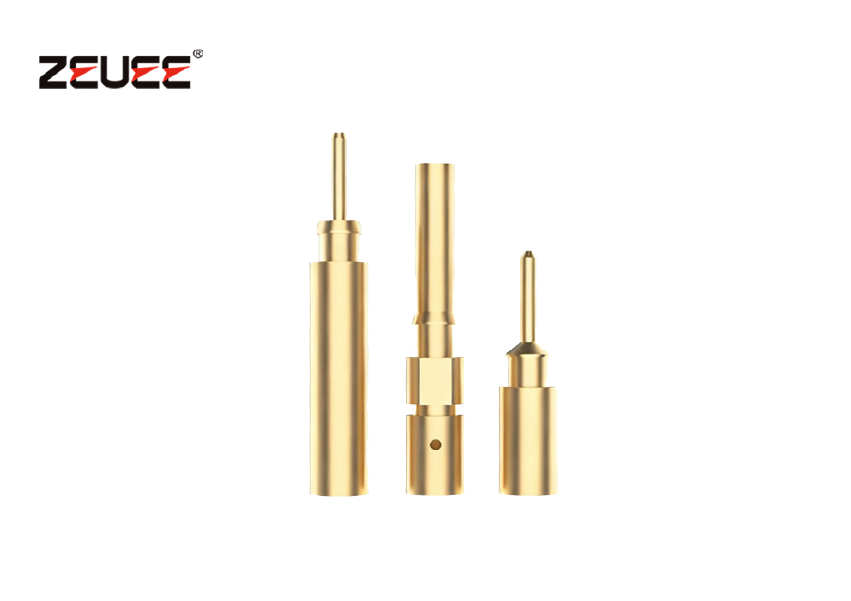

Specifically designed for fully automated testing of insertion/extraction force, mating cycles, and mechanical performance of sockets and connectors in automotive electronics, consumer electronics, industrial connectors, and medical devices.
Machine Configuration:
Machine Size：1100*700*1900mm
Machine Efficiency：12-15pcs/min
Machine Power：300w
Air Pressure/Voltage: 0.4-0.6Mpa/220V AC
