Product Information

Machine Name :

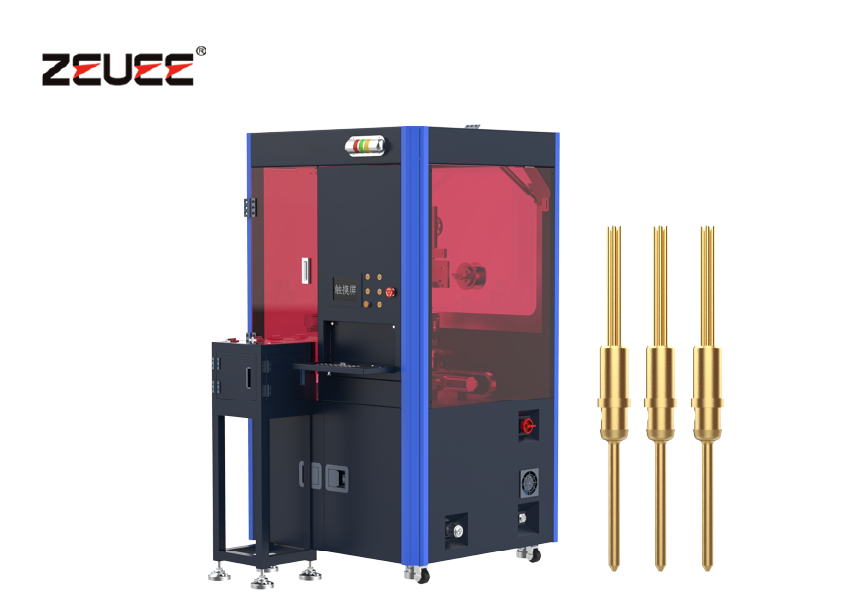

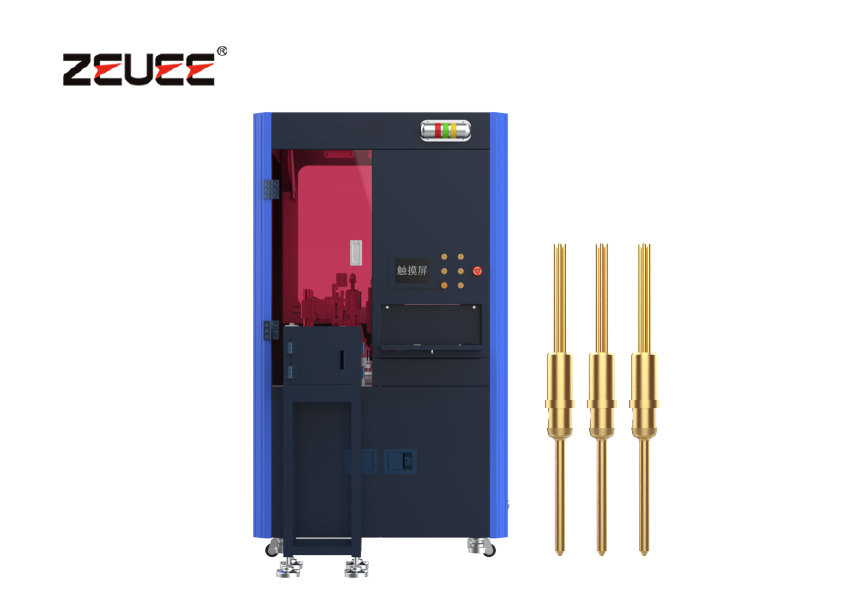

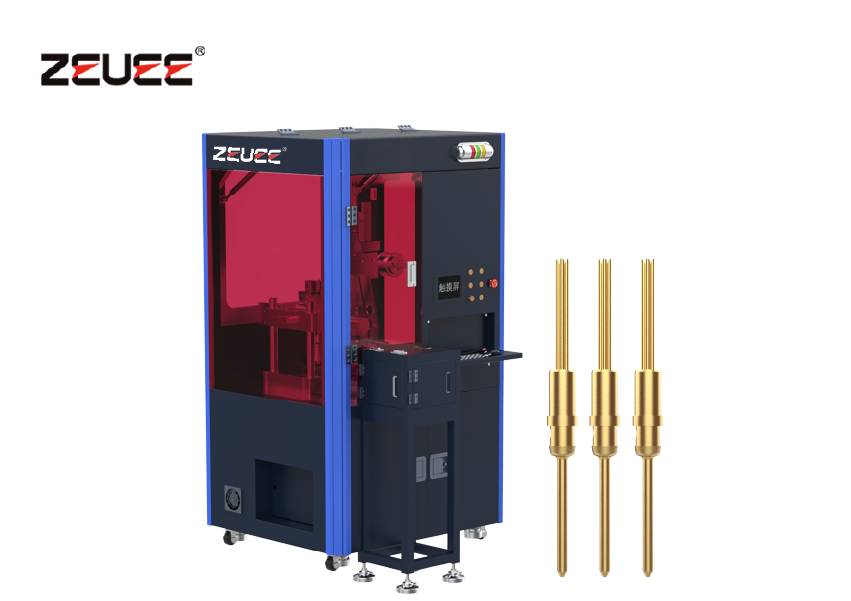

Brush type needle assembly machine

Machine Details:

This brush type needle assembly machine integrates a precision vibratory feeder and a highly compatible feeding system, supporting two types of terminal tail stocks while achieving precise angled cutting and patterned arrangement of 0.2mm brush wires. Built with FESTO/SMC pneumatics, HIWIN slide rails, and S136 ground modules, and driven by Mitsubishi PLC with German electronic components, it ensures highprecision automated assembly and riveting. Featuring fault alarms and modular design for easy maintenance, it measures 1400×800×1850mm with an output of 4.55m/min at 5000W, designed for automated production of precision electrical brush contacts.

Function Highlights:

1.The precision vibrating tray automatically feeds materials.

2. Strong compatibility

Compatible with 2 types of terminal tail stocks,the tail stocks are automatically fed, and the 0.2mm brush wires are precisely cut at an Angle and arranged in 2 standard patterns.Automatic assembly and riveting,with a high degree of automation.

3. Quality components

All machine parts are made of original pneumatic components from FESTO/SMC, Taiwan HlWIN precision slide rails, and modules are precisely ground from S136. Mitsubishi PLC/ touch screen control and other electronic components are all products of German brands.

4. Abnormal alarm

Easy to disassemble and maintain, the equipment has high flexibility.

Application Field:

Specifically designed for automated cutting, arranging, assembly, and inspection of brushtype contact pins in highprecision connectors, test probes, microswitches, and related electronic components.

Machine Configuration:

Machine Size：1400*800*1850mm

 Machine Efficiency：4.5-5m/min

Machine Power：5000w

Air Pressure/Voltage: 0.4-0.6Mpa/220V AC
