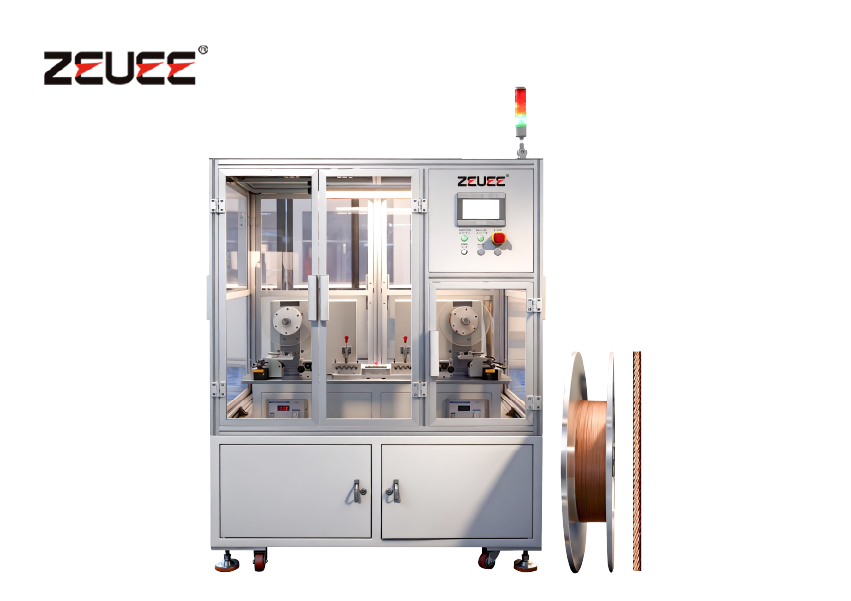

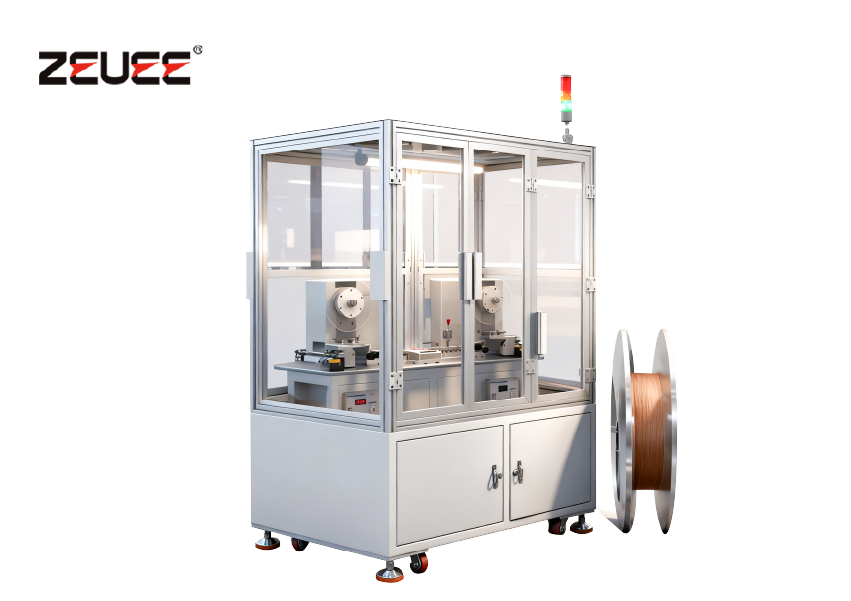

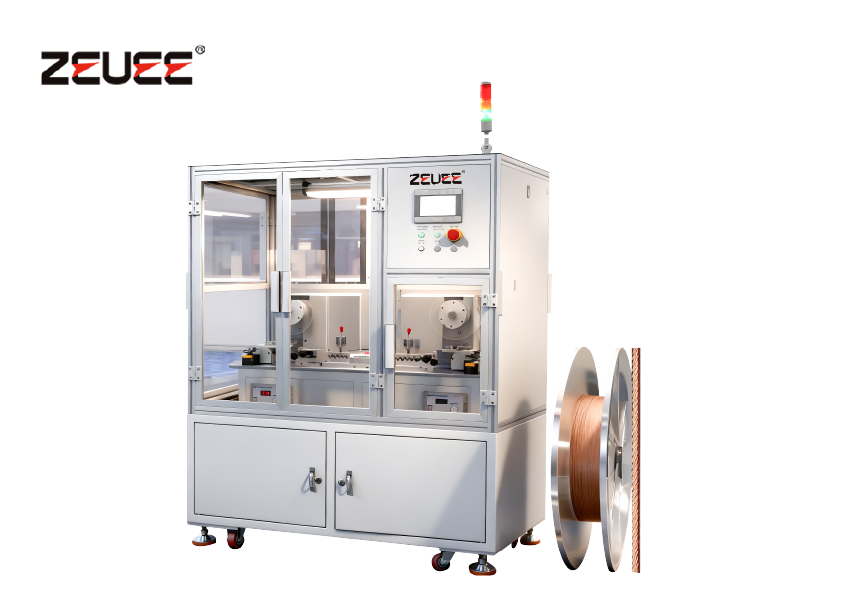

Twist pin automatic alignment machine
Machine Details:

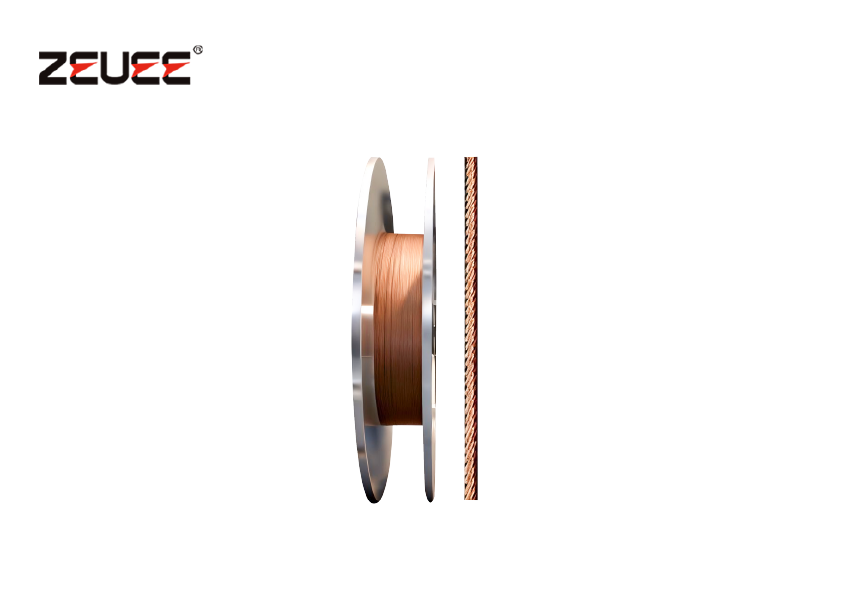

The twist pin automatic alignment machine is a high-precision wire processing system integrating constant tension unwinding and multi-wheel alignment. It effectively removes wire stress and ensures stable straightening through horizontal and vertical adjustments. Featuring intelligent wire break detection with auto-stop and a modular design for easy maintenance, it measures 1400×800×1850mm with a straightening speed of 4.5-5 m/min at 5000W, suitable for efficient and flexible alignment of micro-wires used in spring probes and precision connectors.
Function Highlights:
1. Constant tension stringing
The stringing module is equipped with a tension controller,ensuring stable and reliable stringing speed and tension.
2. Multi-wheel alignment
The feeding system is equipped with multi-wheel alignment mechanisms in both horizontal and vertical directions, enhancing product quality and improving the efficiency of stress relief and alignment.
3. Automatic stop machine on wire breakage
The device intelligently analyzes the stringing status, triggers an alarm and stops automatically in case of wire breakage,improving operational efficiency.
4. Modular equipment: The equipment is with modularized design, easy to disassemble and maintain, and has high flexibility.
Application Field:
They are widely used in industries such as aerospace, national defense and military, precision instruments, and medical devices.
Machine Configuration:
Machine Size：1400*800*1850mm
Machine Efficiency：4.5-5m/min
Machine Power：5000w
Air Pressure/Voltage: 0.4-0.6Mpa/220V AC
