Product Name:

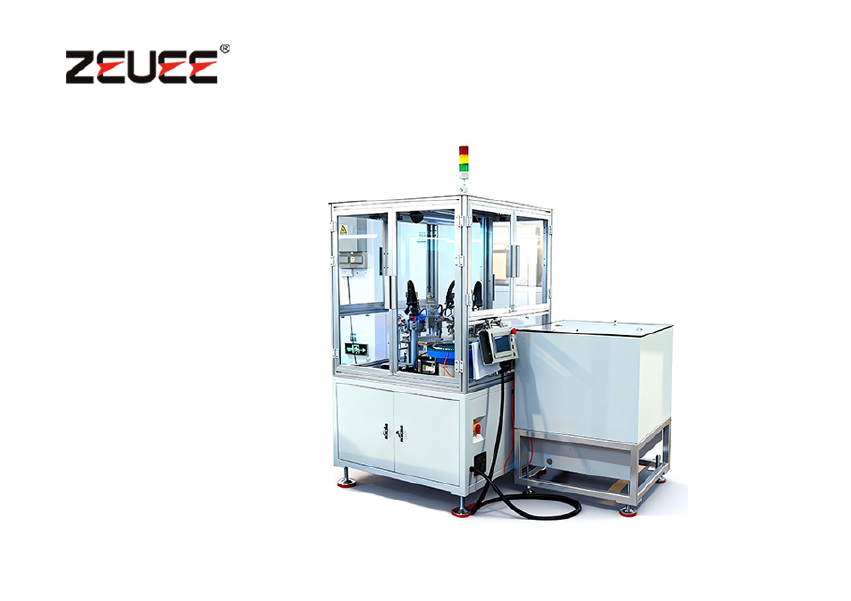

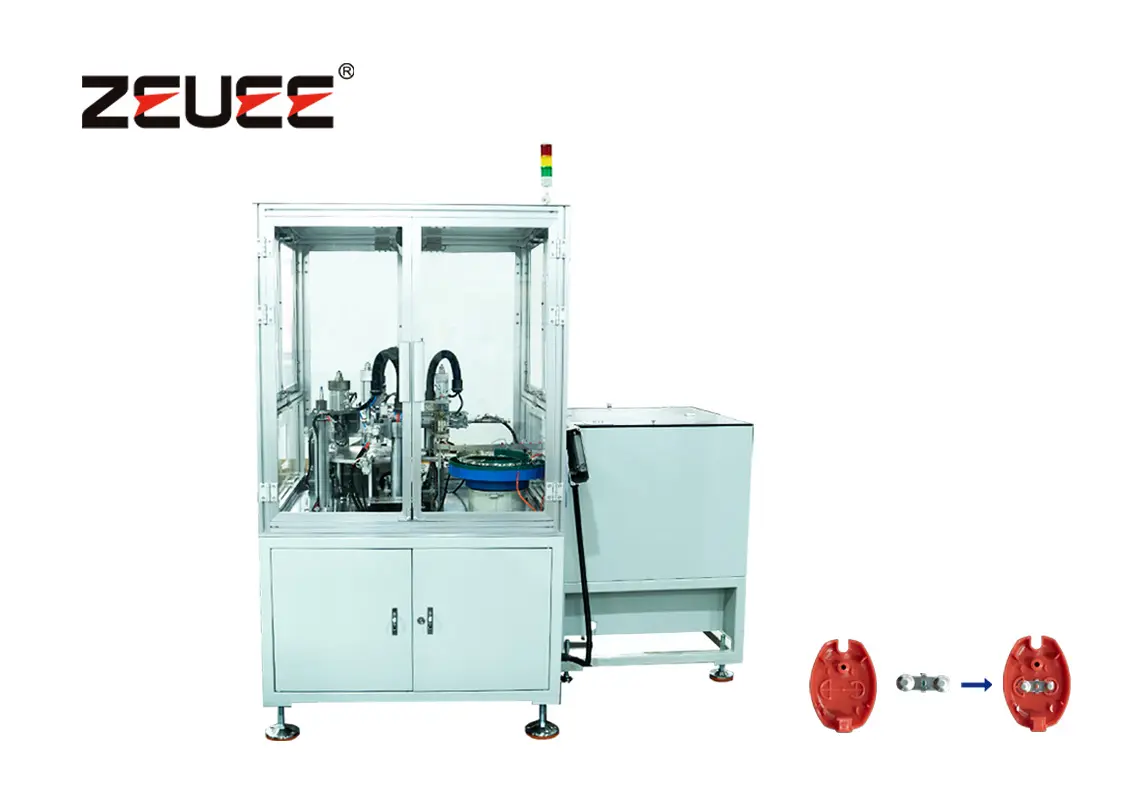

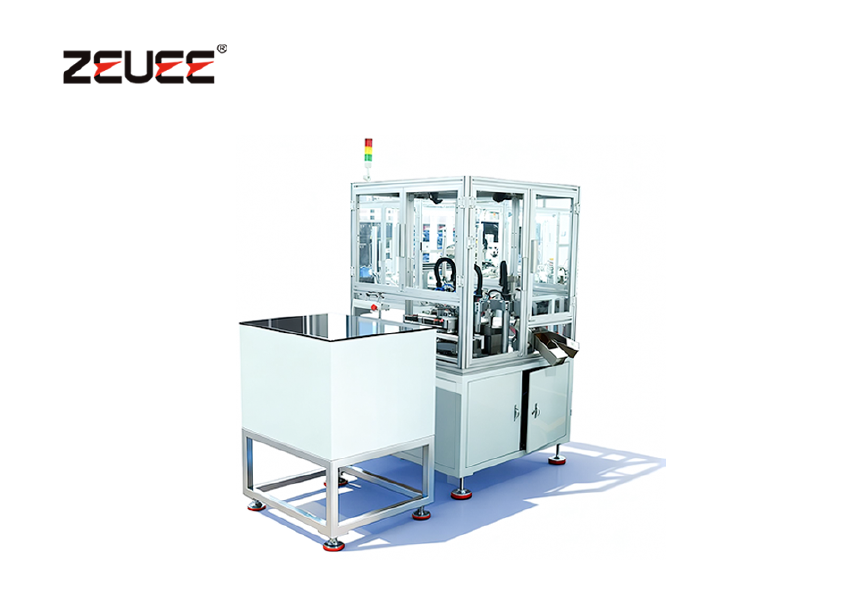

Battery Cell Automatic Assembly Machine
Product Detail:
This machine integrates automatic feeding, assembly, stamping, and marking functions into a single unit, providing a highly efficient automated solution for battery cell assembly. Equipped with a high-speed vibratory bowl feeder and a high-speed rotary processing table, it achieves a cycle time of 2.4 seconds per piece and an hourly output of 1500 cells, increasing efficiency by 8 times compared to manual operation. The optional laser marking function allows for precise post-stamping marking, facilitating traceability. The machine significantly enhances the efficiency, precision, and quality of battery cell assembly, making it an ideal choice for businesses to reduce labor costs, optimize production processes, and achieve automated manufacturing.
Key Features:
Automatic Feeding: Utilizes a vibratory bowl for automated and orderly part supply.
Precision Handling: Robotic arm ensures accurate picking and sub-millimeter positioning for high efficiency.
Precision Stamping: The stamping rotary table mechanism enables precise control, delivering stable and reliable stamping operations to ensure a secure and firm connection between the battery cell and its housing.
Efficient Assembly: Features an intelligent cycle-time regulation system to dynamically adjust assembly pace. Its modular design allows for compatibility with multiple product variants.
Application Field:
This machine is widely used in the automated production of various battery modules and electronic components, including applications in consumer electronics, energy storage systems, automotive electronics, and medical devices.
Specification Parameters:
Dimensions: 1100 mm (L) x 1050 mm (W) x 2000 mm (H)
Production Efficiency: 25 pcs/min (~1500 pcs/hour)
Power: 1500 W (1.5 kW)
Air Pressure / Voltage: 0.4-0.6 MPa / 220V AC
