Machine Name:

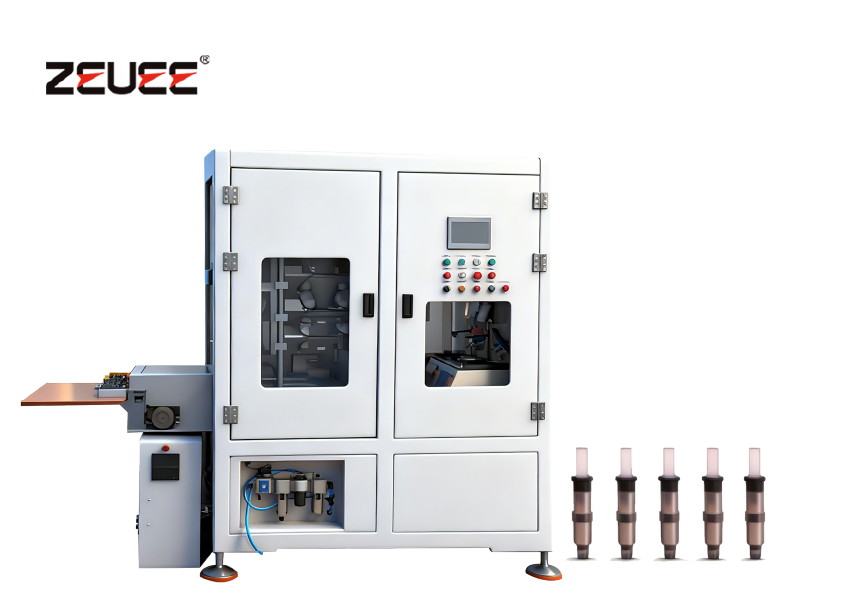

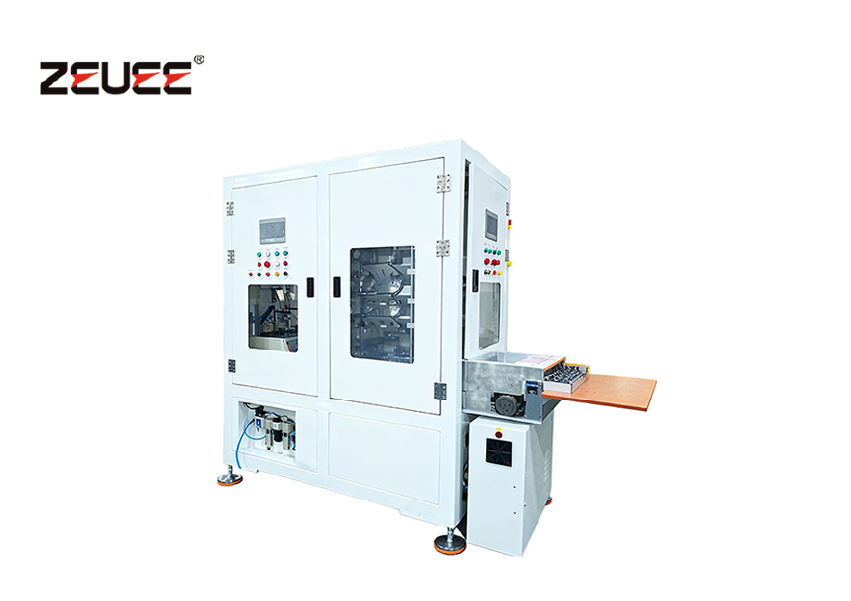

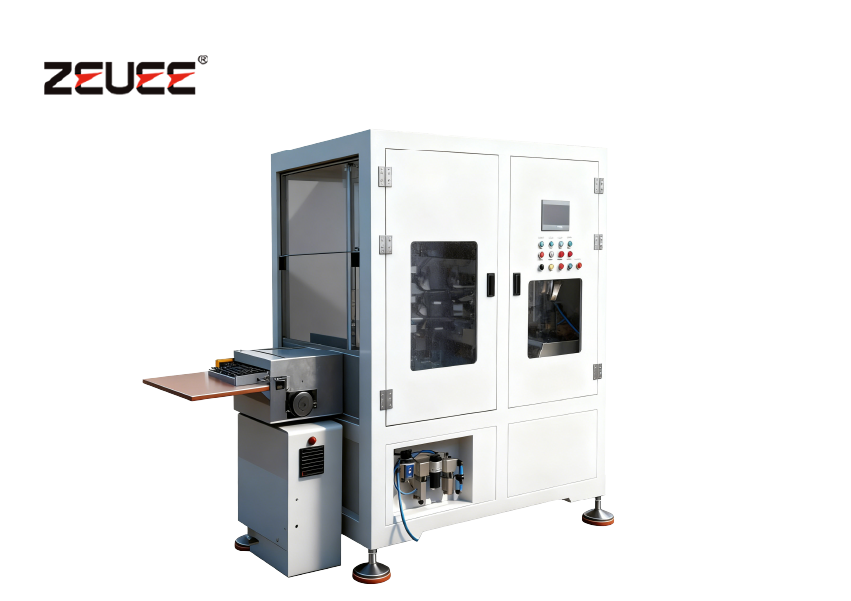

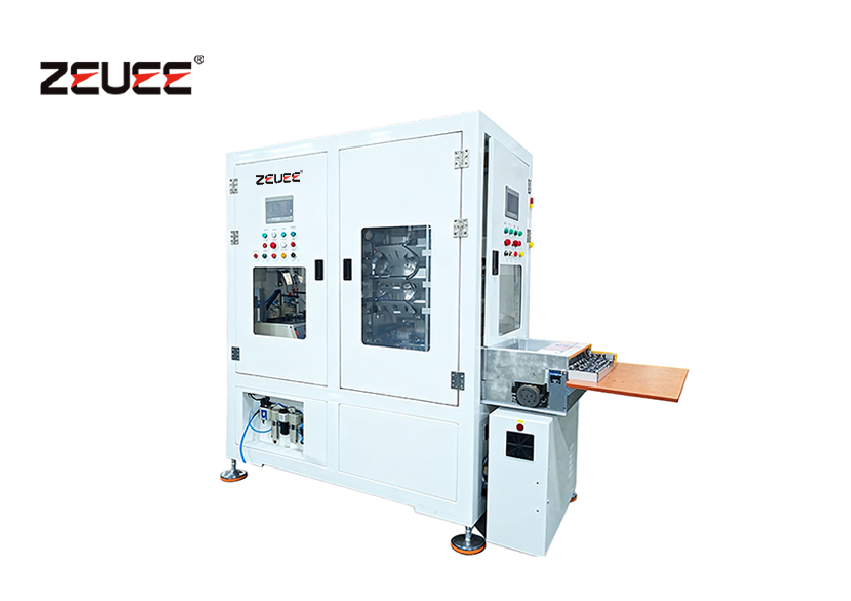

Optical fiber automatic grinding machine
Machine Details:
This equipment is an automated solution specially designed for high-precision grinding requirements and is widely used in the field of optical fiber communication and the processing industry of high-hardness composite materials. The equipment integrates high-precision mechanical hands for flexible picking and placing, CCD vision for precise positioning, four-stage precision grinding and intelligent post-processing, achieving full-process grinding automation. The equipment can independently complete the laying of grinding paper, positioning of grinding discs, precise time control, automatic disassembly of fixtures, automatic ultrasonic cleaning, and efficient air drying, achieving closed-loop product reflux and significantly enhancing grinding efficiency. It provides stable and reliable automated support for the mass production of optical fiber communication devices and the precision processing of high-hardness composite materials.
Function Highlights:
1.Intelligent mechanical hand
The mechanical hand intelligently picks up materials and the PLC intelligent control realizes flexible automatic feeding.
2.Four rounds of automatic grinding
Four times of intelligent control grinding, precise control of coarse grinding → fine grinding → fine grinding →super precision grinding, precision leap, achieved in one step.
3.Ultrasonic automatic cleaning
Automatic cleaning,automatic drying,and automatic water drainage facilitate efficient production through process automation.
4.CCD vision inspection system
Equipped with CCD detection, visual positioning guidance and missed installation detection Automatic misalignment alarm.
Application Fields:
It provides stable and reliable automated support for the mass production of optical fiber communication devices and the precision processing of high-hardness composite materials.
Machine Configuration:
Machine Size：1600*1500*2000mm
Machine Efficiency：384pcs/h
Machine Power：4500w
Air Pressure/Voltage: 0.4-0.6Mpa/220V AC
