Product Information

Machine  Name:

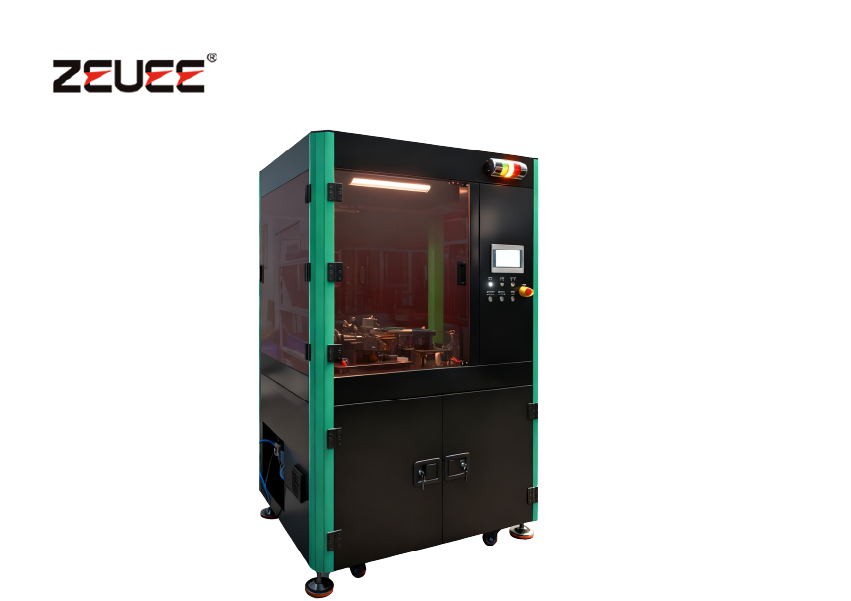

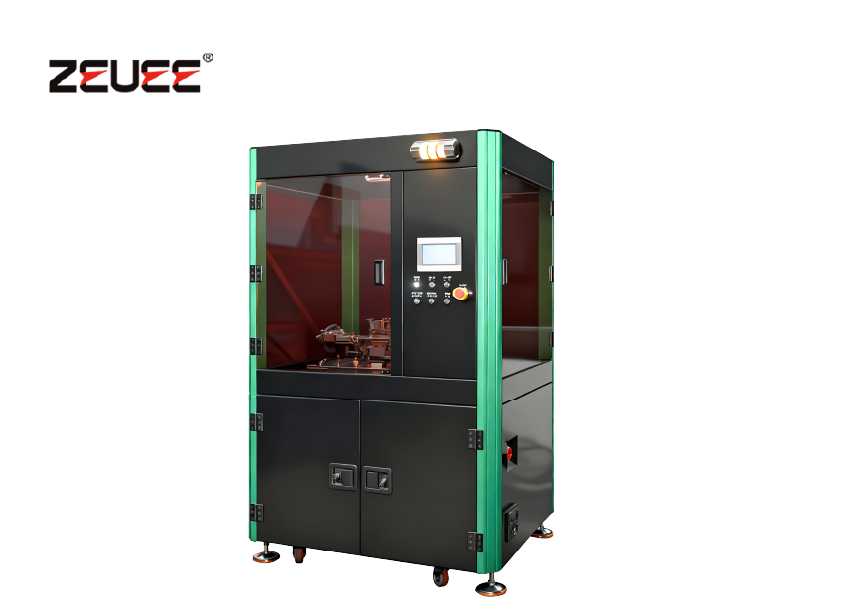

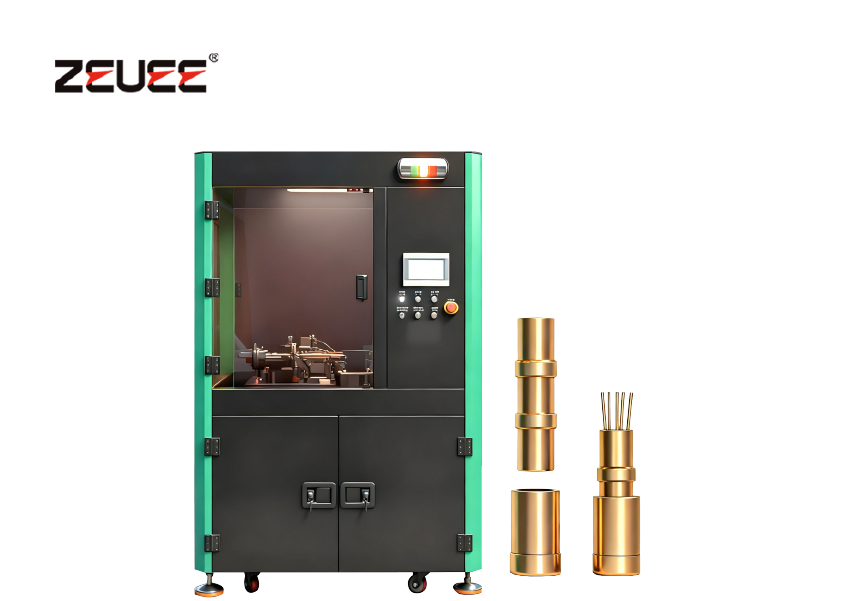

Automatic thread threading machine for spring holes

Equipment Details:

This hyperboloid socket wire threading machine is designed for precision wire insertion into socket front components. It features an intelligent, customizable feeding system with magnetic tracks and fiber optic orientation detection, along with color recognition and titanium-plated pickup pins for scratchfree handling. Guide wheels ensure zerodisplacement threading, while a highprecision mandrel automatically controls winding angle and tension to prevent breakage. Measuring 1600×860×1800mm with an output of 1517 pcs/min at 1000W, it delivers fully automated, consistent wire threading for hyperboloid sockets.

Key Features :

1.Customizable solution

The direct vibration material channel adopts a magnetic material channel cover plate, which is convenient for maintenance. The magnetic products can be customized with a V-mouth design for the material channel

2.Optical fiber intelligent recognition

Accurately distinguish the product from the color of the material pick-up needle. The silver-plated products adopt titanium-plated process feeding rods to ensure that the materials are not worn.

3.Precise threading

The guide wheel ensures that the silk thread smoothly enters the threading mechanism with zero displacement during threading.

4.High-precision mandrel automatic threading

Precisely control the Angle, position and force of the thread turning to achieve a uniform and smooth thread turning effect. The Angle remains consistent,eliminating thread breakage and scratches.

Application Fields:

Specifically used for fully automated wire threading, inspection, and assembly of hyperboloid socket front components in aerospace, military electronics, highreliability test fixtures, and precision industrial connectors.

Equipment Parameters

Dimensions: 1600*860*1800mm

Capacity: 15-17pcs/min

Power: 1000w

Air Pressure/Voltage: 0.4-0.6Mpa/220V AC
