Machine Name:

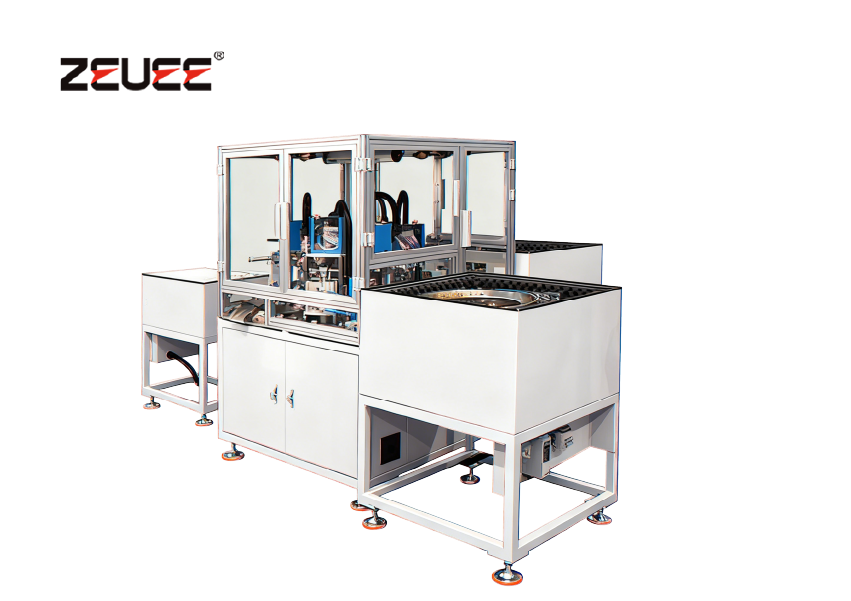

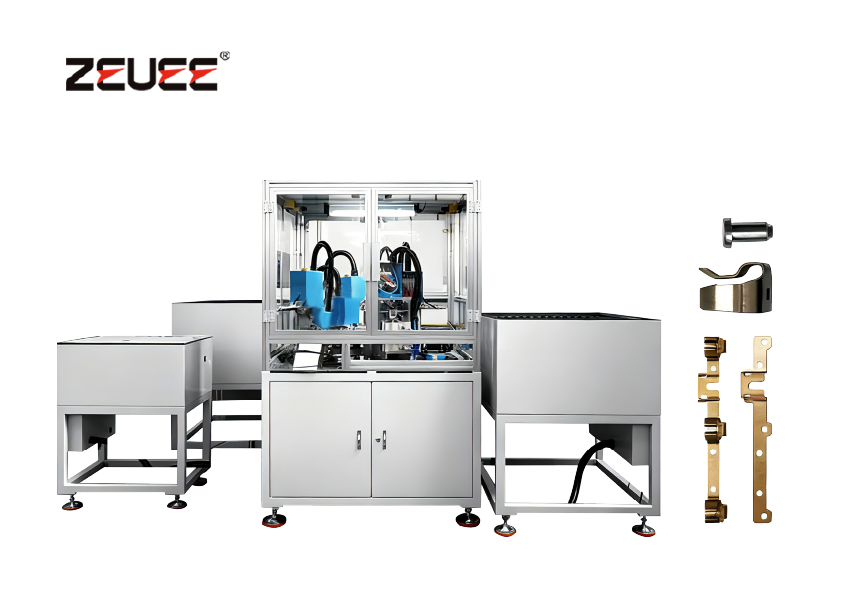

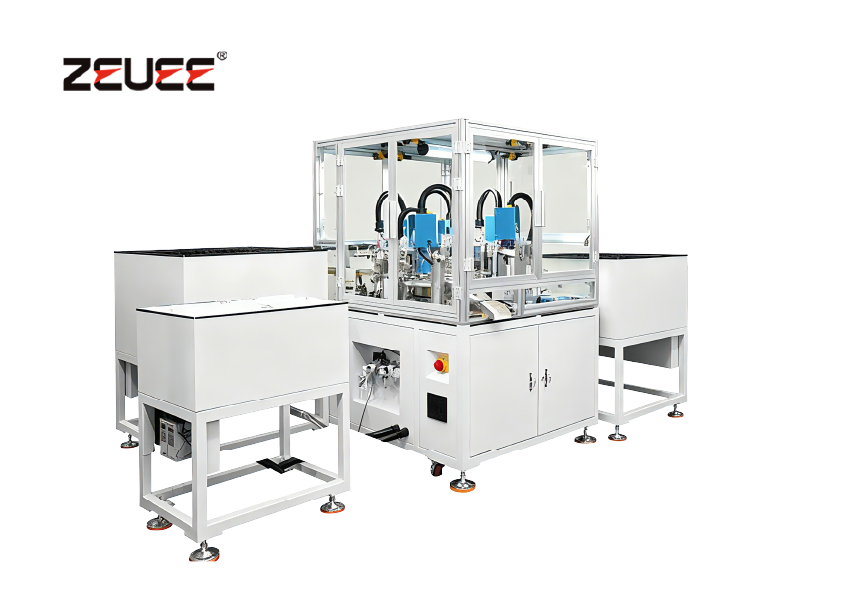

Copper automatic assembly machine
Machine Details:
This copper automatic assembly machine features a rotary dial structure for rapid fixture changeover and unmanned model switching. Equipped with a vibratory bowl feeder for stable rivet supply and a three-station simultaneous riveting system for efficient, tight joining of multiple copper parts. Integrated online fiber optic monitoring enables automatic material arrival and shortage detection with instant alarms. Measuring 2100×2000×2000mm with an output of 15-20 pcs/min at 2000W, it is engineered for high-stability, high-efficiency automated riveting and assembly of copper components.
Function Highlights:
1.Disc structure
Disc-shaped structure with advanced layout.Fixtures can be switched at anytime, and no manual operation is required for changing models, fully demonstrating high efficiency and intelligence.
2.Efficient loading of rivets
The rivets are precisely fed by the vibrating disc through direct vibration.The short material channel eliminates material jamming, ensuring the smooth operation of production.
3. Precise positioning riveting

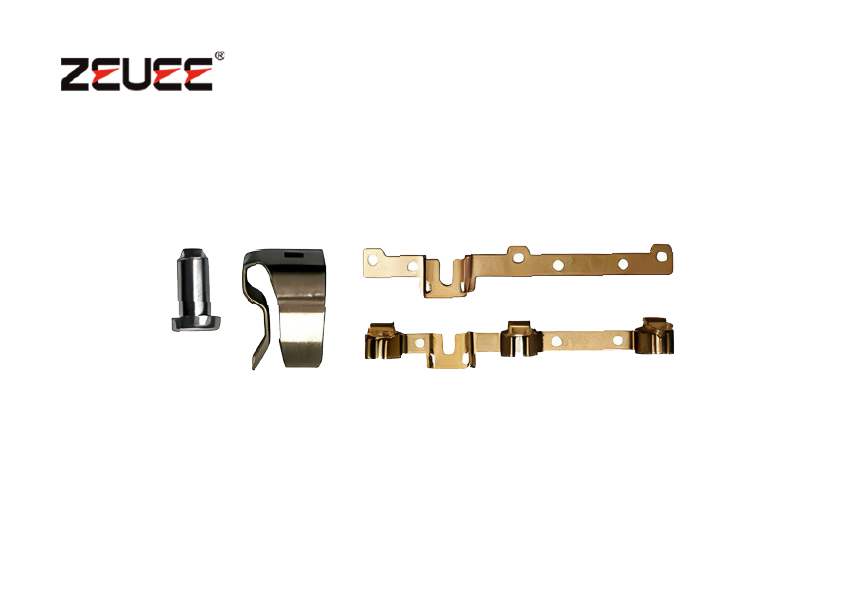

Three copper parts are riveted simultaneously and tightly connected, achieving an outstanding quality of copper part assembly.
4.Online optical fiber monitoring
The equipment is equipped with fiber optic material arrival detection and material shortage detection, and automatically alarms in case of abnormality.
Application Fields:
Suitable for automated production lines requiring precision riveting and assembly of copper parts, such as electrical switches, relays, connectors, and hardware accessories.
Machine Configuration:
Machine Size：2100*2000*2000mm
Machine Efficiency：15-20pcs/min
Machine Power：2000w
Air Pressure/Voltage: 0.4-0.6Mpa/220V AC
