Machine Name :

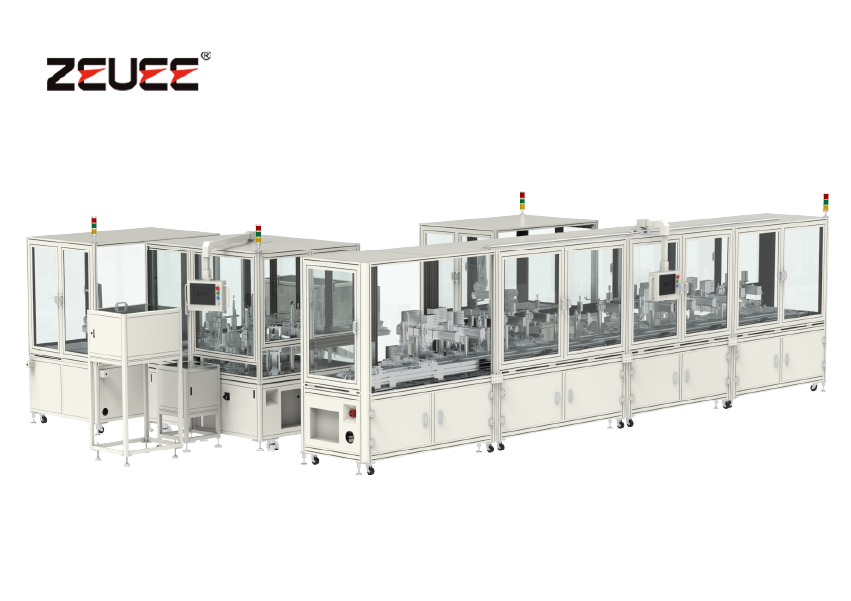

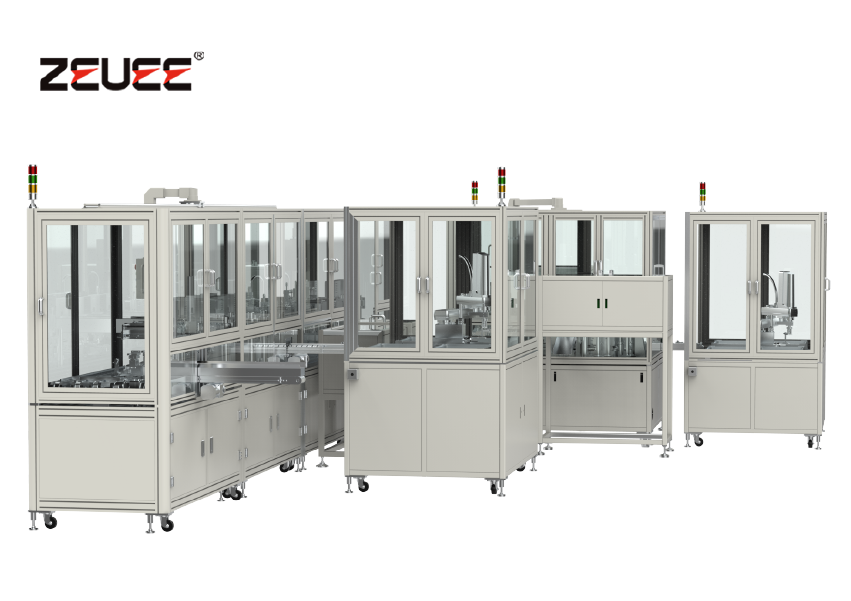

Right wheel assembly machine for sweeping robots
Machine Details:
This dedicated right wheel assembly machine for sweeping robots integrates a precision vibratory bowl feeder and high-speed PPU manipulator to achieve automatic high-precision grasping and assembly of hubs, tires, and other components. Equipped with a touch HMI and intelligent fault alarm system, it automatically halts upon jams or material shortages to ensure safety and continuity. Measuring 9000×3800×2000mm with an output of 8-12 pcs/min and compatible with 220/358V power, it is designed for automated, flexible assembly of sweeping robot wheel modules.
Function Highlights:
1. Fault and safety alarm system
When the equipment appears unqualified parts stuck, motion mechanism disorders, parts run out of power supply voltage fluctuations and other situations, automatic shutdown alarm and display fault model.2. Automatic up-down material
The large-capacity design features a fast feeding speed,significantly enhancing work efficiency. The surface is coated with PU glue to prevent random patterns and reduce noise.
3. Touch human-machine interface
The touch human-machine interface features adjustable intelligent parameters and an intelligent operating system that is easy to operate and simple to learn.4. The PPU manipulator grasps automatically
High repeatability accuracy, fast and stable operation speed. It automatically conveys feed and removes components in a confined space, perfectly solving the problem of manual feeding.
Application Fields:
Specifically designed for fully automated assembly and inspection lines of wheel modules in household and commercial sweeping robots, cleaning devices, and other mobile robots.
Machine Configuration:
Machine Size：9000*3800*2000mm
Machine Efficiency：8-12pcs/min
Machine Power：220/358V 50 HZ
Air Pressure/Voltage: 0.4-0.6Mpa/220V AC
