Machine Name :

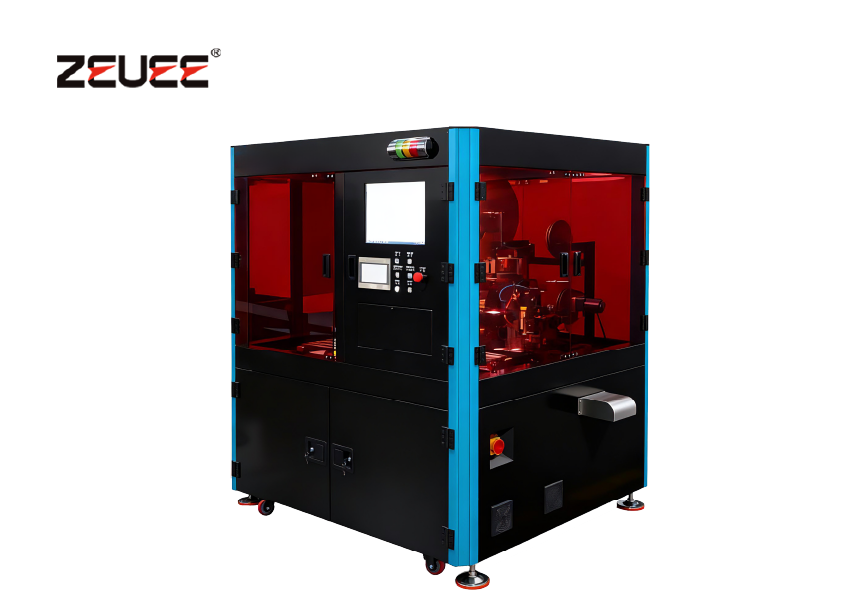

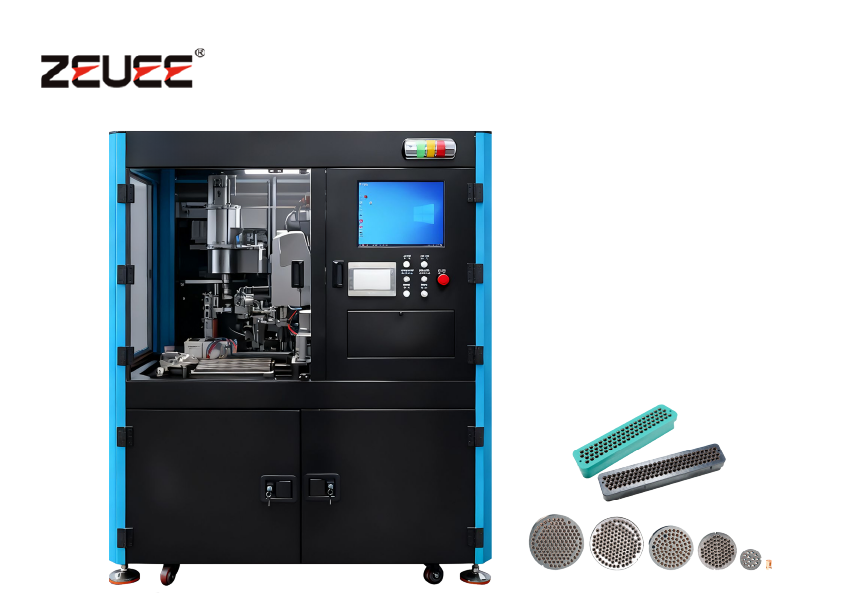

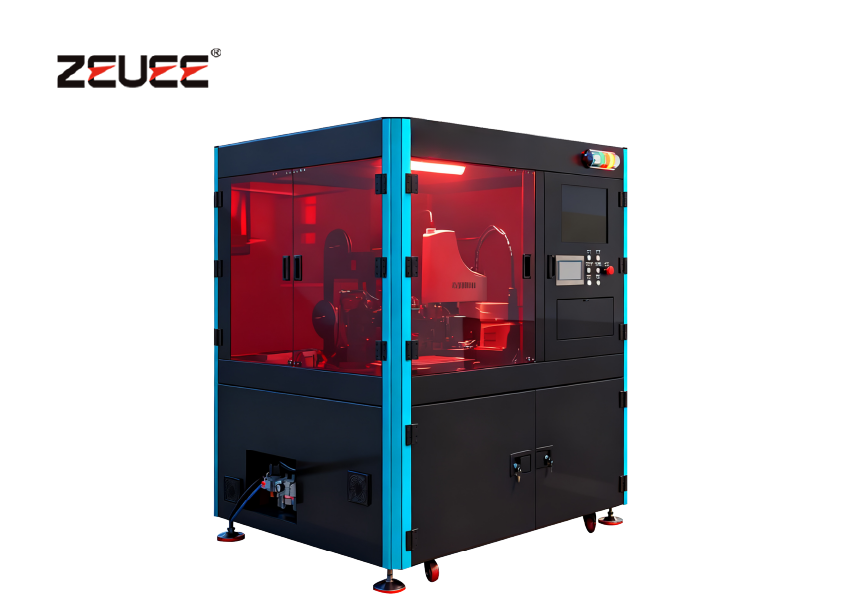

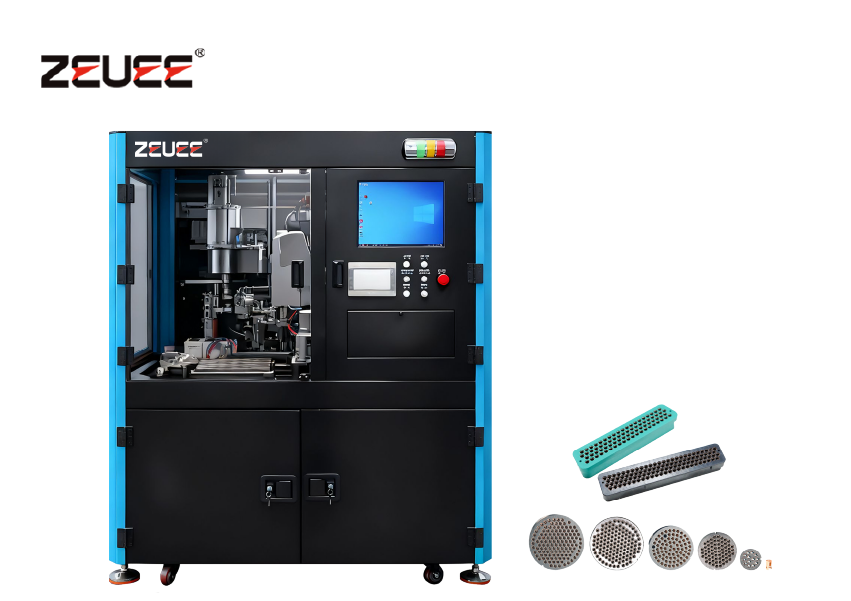

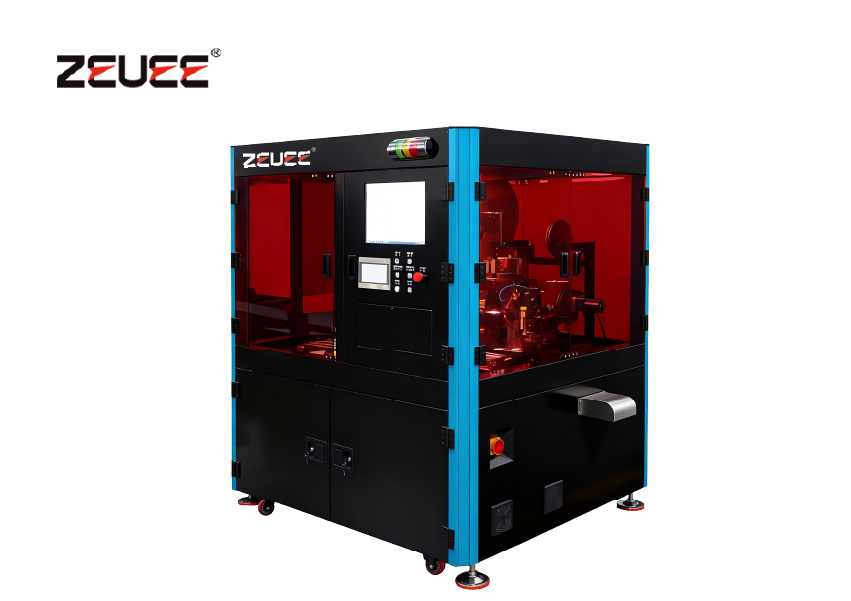

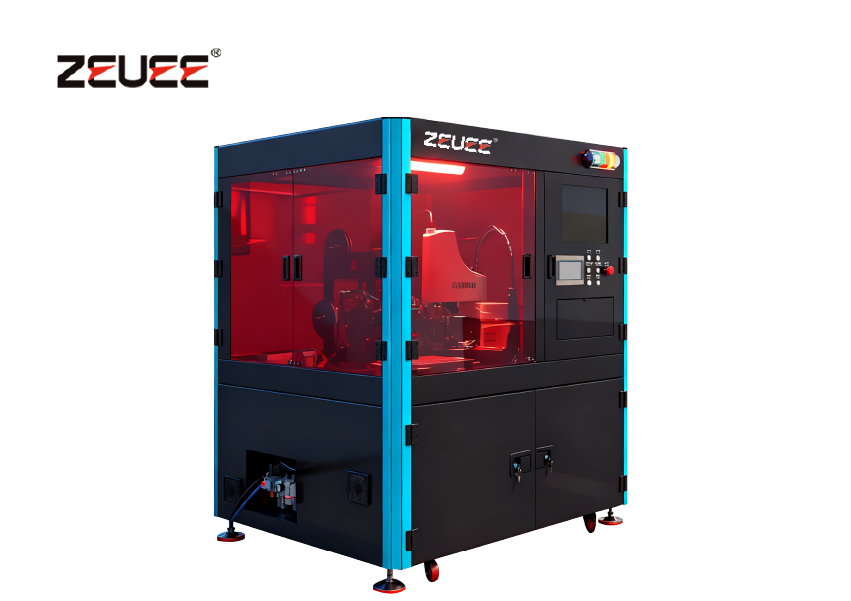

Rectangular and circular electrical connector automatic assembly machine
Machine Details:
This rectangular and circular electrical connector automatic assembly machine integrates a four-axis robot, self-developed high-precision PPU manipulator, and flexible feeding system to achieve automatic loading/unloading, precision assembly, and terminal tail material processing. Featuring modular design with quick-change insulating parts trays, it supports flexible multi-model production. With dimensions of 1760×2000×1800mm and a cycle time of 15 pcs/min at 2500W, it is suitable for automated high-mix, low-volume connector production lines.
Function Highlights:
1. Four-axis robot
The four-axis robot clamping can achieve flexible feeding and flexible loading and unloading.
2. Automatically remove tailings
The terminal tail material strip is cut by using the tail material cutting mechanism automatically collect in the waste box.
3.PPU manipulator
After the self-developed standard module is arranged, the X-axis travel of the grasping and placing position can be adjusted independently, It has high precision and can be adjusted quickly.It can also be reused and is convenient for assembly.

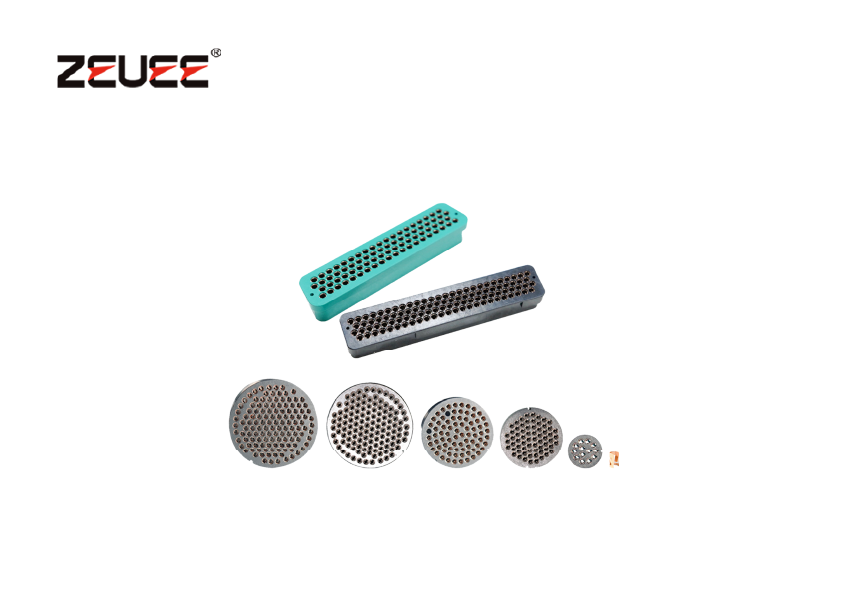

4. Insulating parts tray
The insulating parts tray is used for feeding the material tray can be quickly disassembled and replaced with multiple types of insulating parts to achieve universality.
Application Fields:
Designed for fully automated, flexible assembly of various rectangular and circular electrical connectors in automotive electronics, industrial controls, consumer electronics, and communication equipment.
Machine Configuration:
Machine Size：1760*2000*1800mm
Machine Efficiency：15pcs/min
Machine Power：2500w
Air Pressure/Voltage: 0.4-0.6Mpa/220V AC
