Machine Name :

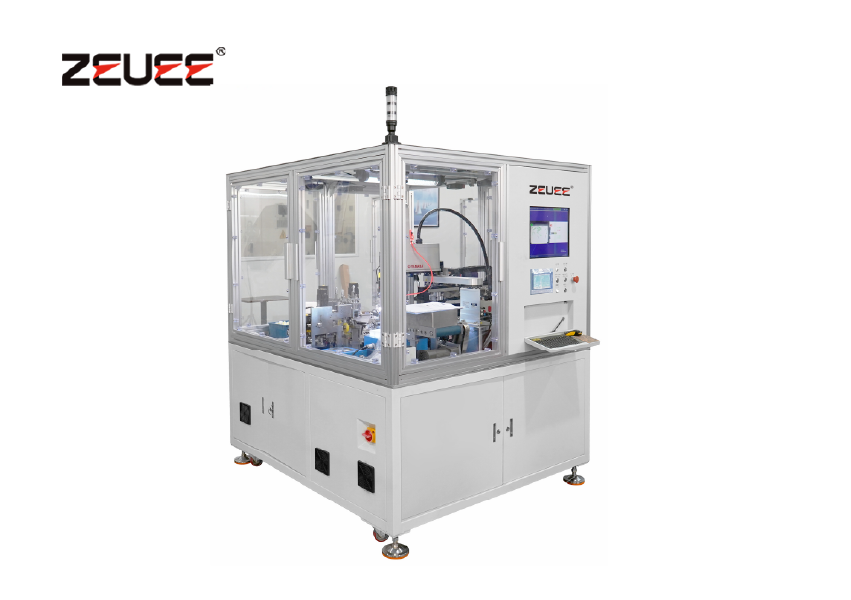

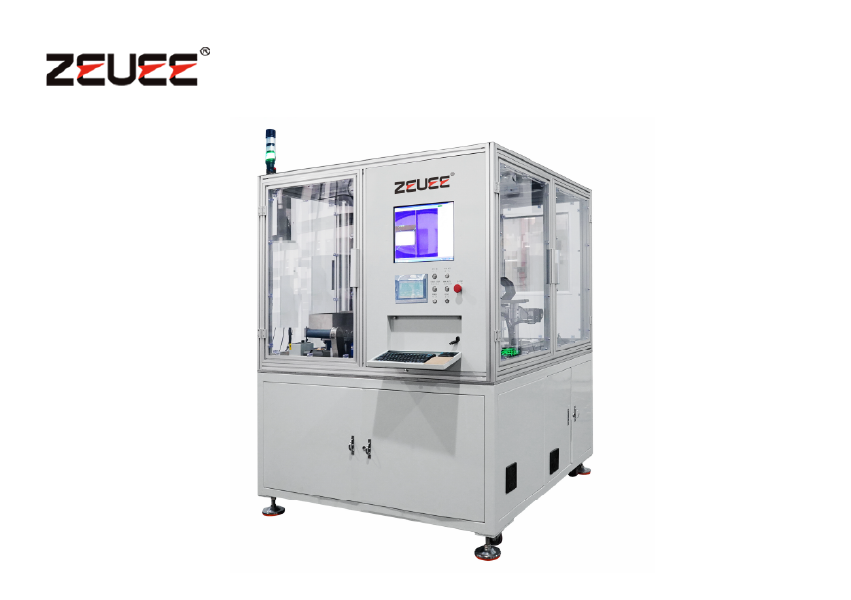

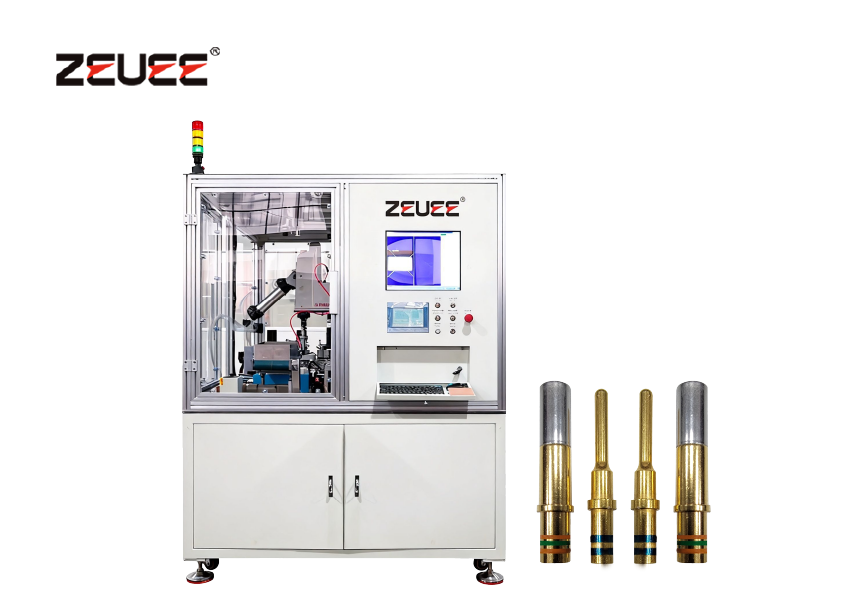

Socket automatic coloring machine
Machine Details:
This socket automatic colouring machine integrates a four-axis robot with vision-guided flexible feeding and a high-precision coating system for accurate, uniform, and durable color ring application. Equipped with a CCD vision system for real-time inspection of appearance, dimensions, and shape, it automatically alarms and stops upon detecting abnormalities. The intelligent control allows flexible parameter adjustment to accommodate various specifications. Compact (1100×970×1900mm) with an output of 20 pcs/min at 4600W, it is engineered for automated, high-quality color coding of connectors.
Function Highlights:
1.Four-axis robot flexible feeding
Use the four-axis robot visual automatic feeding automatic stop when is full.
2.Precision painting
The coloring position is accurate, the color is uniform,and the color ring has good adhesion and durability.
3.CCD detection
CCD detect product appearance,size and shape, real-time analysis of detection data and automatic alarm and shutdown in case of abnormality.
4.Multi-specification adaptation
Intelligent control flexible setting of color parameters to meet a variety of production needs.
Application Fields:

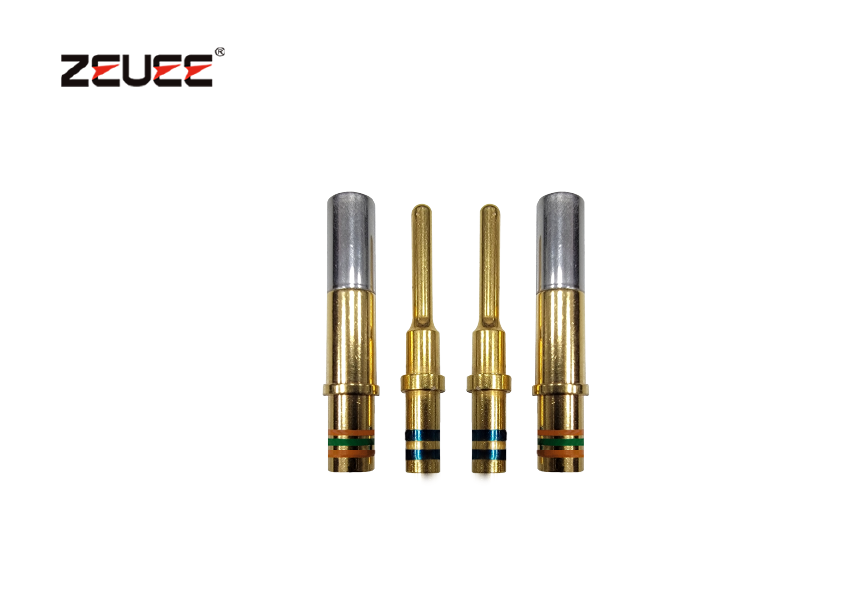

Specifically designed for automated color ring coating, inspection, and marking of pins/sockets in electronic connectors, automotive connectors, and industrial terminals.
Machine Configuration:
Machine Size：1100*970*1900mm
Machine Efficiency：20pcs/min
Machine Power：4600w
Air Pressure/Voltage: 0.5-0.8Mpa/220V AC
